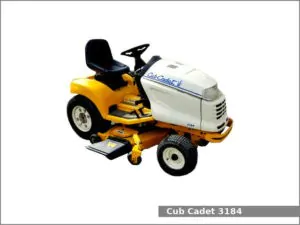

Cub Cadet 3184

Cub Cadet 3184The Cub Cadet 3184 is a 2WD lawn and garden tractor from the 3000 series. This tractor was manufactured by Cub Cadet (a part of MTD) from 2000 to 2001. The Cub Cadet 3184 is equipped with a 0.6 L (35.0 cu·in) V-twin gasoline engine and a hydrostatic transmission with infinite forward and reverse gears.

The Cub Cadet 3184 garden tractor used the Kohler Command CH18S engine. It is a 0.6 L, 573 cm2, (35.0 cu·in) V-twin natural aspirated gasoline engine with 75.0 mm (2.95 in) of the cylinder bore and 67.0 mm (2.64 in) of the piston stroke. The compression ratio rating is 8.5:1. This engine produced 18.2 PS (13.4 kW; 18.0 HP) of output power.

The Cub Cadet 3184 is equipped with power steering, external disc brakes, open operator station and 17.0 liters (4.5 US gal.; 3.7 Imp. gal) fuel tank.

Following attachments are available for the Cub Cadet 3184 garden tractor:

  • Mid-mount Cub Cadet 190-209 44 in (1,110 mm) mower deck 3-blades and hydraulic lift
  • Front-mount Cub Cadet 190-352 54 in (1,370 mm) blade
  • Front-mount Cub Cadet 190-353 45 in (1,140 mm) two-stage snow blower

Cub Cadet 3184 Specifications

General Specifications
Model Cub Cadet 3184
Length 1,830 mm (72 in)
Width 1,060 mm (41.7 in)
Height 1,100 mm (43.3 in)
Wheel base 1,250 mm (49.2 in)
Ground clearance 150 mm (5.9 in)
Weight 440 kg (970 lbs)
Fuel tank capacity 17.0 liters (4.5 US gal.; 3.7 Imp. gal)
Battery 12V, CCA 435A
Cabin type Open operator station
Engine
Engine model Kohler Command CH18S
Engine type Four-stroke, air-cooled, V-twin
Cylinders 2
Fuel type Gasoline
Displacement 0.6 L, 573 cm2, (35.0 cu·in)
Bore and stroke 75.0 mm X 67.0 mm (2.95 in X 2.64 in)
Compression ratio 8.5:1
Horsepower 18.2 PS (13.4 kW; 18.0 HP)
Starter Electric
Oil type SAE 10W-30
Oil capacity: 1.9 L (2 US. qt, 1.7 Imp. qt.)
Spark plug Champion RC12YC
Transmission and chassis
Chassis 4×2 2WD
Steering type Power
Brakes External disc
Transmission model
Transmission type Hydrostatic
Gears Infinite forward and reverse
Transmission oil capacity 4.3 L (1.1 US. gal, 0.9 Imp. gal.)
Tires
Front tires Lawn/turf: 16×6.5-8
Rear tires Lawn/turf: 23×9.5-12
Hitch
Caterogy 0 (optional)
Control type
Lift capacity (at ends)
PTO (Power take-off shaft)
Front PTO type Independent with E-Vac clutch
Front PTO speed
