Cub Cadet AGS 2130

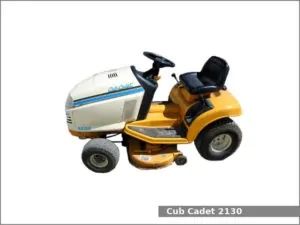

Cub Cadet AGS 2130The Cub Cadet AGS 2130 is a 2WD lawn tractor from the 2000 series. This tractor was manufactured by the Cub Cadet (a part of MTD) from 1994 to 1999. The Cub Cadet AGS 2130 is equipped with a 0.4 L single-cylinder gasoline engine and shaft-driven gear type transmission with 6 forward and reverse gears.

The Cub Cadet AGS 2130 lawn tractor used the Kohler Command CH12.5 engine. It is a 0.4 L, 398 cm2, (24.3 cu·in) single-cylinder natural aspirated gasoline engine with 87.0 mm (3.43 in) of the cylinder bore and 67.0 mm (2.64 in) of the piston stroke. The compression ratio rating is 8.5:1. This engine produced 12.6 PS (9.3 kW; 12.5 HP) at 3,600 rpm of maximum output power.

The Cub Cadet AGS 2130 is equipped with manual steering, internal expanding brakes, open operator station and 11.4 liters (3 US gal.; 2.5 Imp. gal) fuel tank.

Following attachments are available for Cub Cadet AGS 2130 lawn tractor:

  • Mid-mount Cub Cadet 38 38 in (960 mm) mower deck with 2-blades and manual lift
  • Front-mount Cub Cadet 190302 42 in (1,060 mm) blade
  • Front-mount Cub Cadet 190303 40 in (1,010 mm) two-stage snowblower
  • Rear-mount Cub Cadet 190304 28 in (710 mm) tiller with electric lift

Cub Cadet AGS 2130 Specifications

General Specifications
Model Cub Cadet AGS 2130
Length 1,820 mm (71.7 in)
Width 1,140 mm (44.9 in)
Height 1,060 mm (41.7 in)
Wheel base 1,190 mm (46.9 in)
Weight 255 kg (562.2 lbs)
Fuel tank capacity 11.4 liters (3 US gal.; 2.5 Imp. gal)
Battery 12V CCA: 275A
Cabin type Open operator station
Engine
Engine model Kohler Command CH12.5
Engine type Four-stroke, air-cooled, inline
Cylinders 1
Fuel type Gasoline
Displacement 0.4 L, 398 cm2, (24.3 cu·in)
Bore and stroke 87.0 mm X 67.0 mm (3.43 in X 2.64 in)
Compression ratio 8.5:1
Horsepower 12.6 PS (9.3 kW; 12.5 HP) at 3,600 rpm
Torque 20.5 N·m (2.1 kg·m, 15.1 ft·lb) at 2,500 rpm
Starter Electric
Oil type SAE 10W-30, API: SG, SH, SJ or
Oil capacity: 1.9 L (2.01 US. qt, 1.67 Imp. qt.)
Spark plug Champion RC12YC
Transmission and chassis
Chassis 4×2 2WD
Steering type Manual
Brakes Internal expanding
Transmission model Auto Gear System
Transmission type Shaft-driven gear type
Gears 6 forward and reverse
Speed Forward: 9.7 kmh (6 mph) Reverse: 4.8 (3 mph)
Transmission oil capacity 6.6 L (6.97 US. qt, 5.81 Imp. qt.)
Tires
Front tires Lawn/turf: 15×6-6
Rear tires Lawn/turf: 20×9-8
PTO (Power take-off shaft)
Front PTO type Independent with electric clutch
Front PTO spped
ATTENTION! Dear visitors, this site is not a trading platform, an official dealer or a spare parts supplier, so we do not have any price lists, spare parts catalogs, service or owner manuals. We are an information portal and provide the technical specifications.

We try to use verified sources and official documentation, however, differences between sources or errors in entering information may occur. In addition, the characteristics may vary depending on the modification and market. We do not provide advice on technical issues related to the any operation or repair. We do not recommend using provided information for repairing or spare parts ordering, use only official service manuals and spare-parts catalogs.
