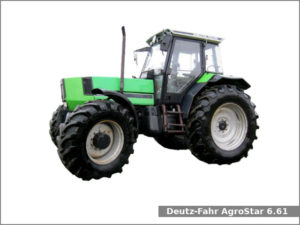

Deutz-Fahr AgroStar 6.61

Deutz-Fahr AgroStar 6.61The Deutz-Fahr AgroStar 6.61 is a 4WD farm tractor from the AgroStar series. This tractor was manufactured by the Deutz-Fahr from 1990 to 1995. The Deutz-Fahr AgroStar 6.61 is equipped with 6.1 L, 6,128 cm2, (373.95 cu·in) six-cylinder diesel engine and gear type transmission with 18 forward and 6 reverse gears.

The Deutz-Fahr AgroStar 6.61 farm tractor used 6.1 L, 6,128 cm2, (373.95 cu·in) six-cylinder turbocharged diesel engine Deutz BF6L913T. The cylinder bore is 102.0 mm (4.02 in) and the piston stroke 125.0 mm (4.92 in). The compression ratio rating is 15.5:1. This engine produced 145 PS (106.6 kW; 143 HP) at 2,300 rpm of maximum output power and 549 N·m (56 kg·m, 404.6 ft·lb) at 1,600 rpm of peak torque. The Deutz-Fahr AgroStar 6.61 is equipped with hydraulic power steering, and 290 liters (76.6 US gal.; 63.8 Imp. gal) fuel tank.

Deutz-Fahr AgroStar 6.61 Specifications

General Specifications
ModelDeutz-Fahr AgroStar 6.61
Length4,900 mm (192.9 in)
Height2,940 mm (115.7 in)
Wheel base2,720 mm (107.1 in)
Weight5,400 kg (11,905 lbs)
Fuel tank capacity290 liters (76.6 US gal.; 63.8 Imp. gal)
Cabin type
Engine modelDeutz BF6L913T
Engine typeFour-stroke, air-cooled, inline
Fuel typeDiesel
Displacement6.1 L, 6,128 cm2, (373.95 cu·in)
Bore and stroke102.0 mm X 125.0 mm (4.02 in X 4.92 in)
Compression ratio15.5:1
Horsepower145 PS (106.6 kW; 143 HP) at 2,300 rpm
Torque549 N·m (56 kg·m, 404.6 ft·lb) at 1,600 rpm
Oil capacity:18.0 L (19.02 US. qt, 15.84 Imp. qt.)
Transmission and chassis
Chassis4×4 MFWD 4WD
Steering typeHydraulic power
Transmission model
Transmission typeGear type or synchronized gears type
Gears18 forward and 6 reverse
Speed Forward: 40 kmh (24.9 mph)
Front tiresAg: 18.4R26
Rear tiresAg: 20.8R38
Three-Point Hitch
Control type
Lift capacity7500 kg (16538 lbs)
