Deutz-Fahr 5105

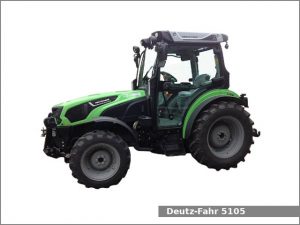

Deutz-Fahr 5105The Deutz-Fahr 5105 is a 2WD or 4WD utility tractor from the 5 series. This tractor has been manufactured by Deutz-Fahr since 2017. The Deutz-Fahr 5105 is equipped with a 3.6 L (221.0 cu·in) four-cylinder diesel engine and one of two transmissions: a partial power shift transmission with 20 forward and 20 reverse gears or a partial power shift transmission with 30 forward and 30 reverse gears.

The Deutz-Fahr 5105 utility tractor used the Deutz TCD 3.6 L04 engine. It is a 3.6 L, 3,621 cm2, (221.0 cu·in) four-cylinder turbocharged intercooled diesel engine with 98.0 mm (3.86 in) of the cylinder bore and 120.0 mm (4.72 in) of the piston stroke. This engine produced 110 PS (80.9 kW; 108.5 HP) at 2,000 rpm of output power.

The Deutz-Fahr 5105 is equipped with power steering, wet disc brakes, cab (standard) with available air-conditioning, and 135.1 liters (35.7 US gal.; 29.7 Imp. gal) fuel tank.

Deutz-Fahr 5105 Specifications

General Specifications
Model Deutz-Fahr 5105
Length 4,140 mm (163 in)
Width 2,160 mm (85 in)
Height 2,760 mm (108.7 in)
Wheel base 2WD: 2,320 mm (91.3 in)
4WD: 2,360 mm (92.9 in)
Weight (shipping) 4,150 kg (9,149 lbs)
Fuel tank capacity 135.1 liters (35.7 US gal.; 29.7 Imp. gal)
Exhaust fluid (DEF) 7.9 liters (2.1 US gal, 1.7 Imp. gal)
Battery 12V, CCA 650A
Cabin type Cab standard with available air-conditioning
Engine
Engine model Deutz TCD 3.6 L04
Engine type Four-stroke, liquid-cooled, inline
Cylinders 4
Fuel type Diesel
Displacement 3.6 L, 3,621 cm2, (221.0 cu·in)
Bore and stroke 98.0 mm X 120.0 mm (3.86 in X 4.72 in)
Horsepower 110 PS (80.9 kW; 108.5 HP) at 2,000 rpm
Torque 440.0 N·m (44.9 kg·m, 324.3 ft·lb) at 1,600 rpm
Starter Electric
Transmission and chassis
Chassis 4×2 2WD or 4×4 MFWD 4WD
Steering type Power
Brakes Wet disc
Differential lock Electro-hydraulic front and rear
Transmission model SDF
Transmission type Partial power shift
Gears 20 forward and 20 reverse
Transmission model SDF
Transmission type Partial power shift
Gears 30 forward and 30 reverse
Tires
Front tires Ag: 380/85R24
Rear tires Ag: 420/85R34
Three-Point Hitch
Category II
Control type
Lift capacity 3,420 kg (7,540 lbs)
4,715 kg (10,395 lbs)
5,260 kg (11,595 lbs)
Front lift capacity 2,100 kg (4,630 lbs)
PTO (Power take-off shaft)
Front PTO type Independent
Front PTO speed 1,000 rpm
Rear PTO type Independent with electro-hydraulic clutch
Rear PTO speed 540/540E or 1000/1000E (optional)
Hydraulic system
Hydraulic type Open center
Pump flow 14.5 gpm (54.9 lpm)
15.85 gpm (60 lpm)
23.8 gpm (90.1 lpm)
