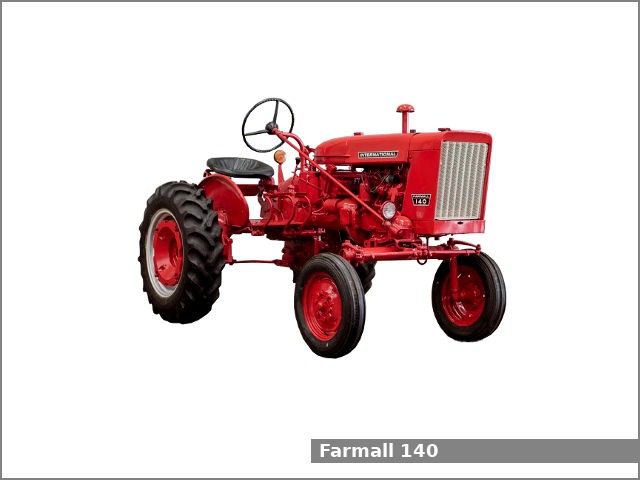

Farmall 140

Farmall 140The Farmall 140 is a 2WD utility tractor manufactured by International Harvester from 1958 to 1973. The Farmall 140 is equipped with a 2.0 L four-cylinder gasoline engine and sliding gear transmission with 4 forward and 1 reverse gear.

The Farmall 140 utility tractor used the International Harvester C-123 engine. It is a 2.0 L, 2,010 cm2, (122.7 cu·in) four-cylinder natural aspirated gasoline engine with 79.0 mm (3.11 in) of the cylinder bore and 102.0 mm (4.02 in) of the piston stroke. This engine produced 21.4 PS (15.7 kW; 21.0 HP) of maximum output power.

The Farmall 140 is equipped with manual steering, differential contracting band brakes, open operator station and 41.6 liters (11 US gal.; 9.2 Imp. gal) fuel tank. The Farmall 140 tractor could be equipped with the International Harvester 1000 loader.

Farmall 140 Specifications

General Specifications
Model Farmall 140
Length 2,710 mm (106.7 in)
Width –
Height 2,100 mm (82.7 in)
Wheel base 1,800 mm (70.9 in)
Weight 1,360 kg (2,998 lbs)
Fuel tank capacity 41.6 liters (11 US gal.; 9.2 Imp. gal)
Battery 6V (early), 12V (later)
Cabin type Open operator station
Engine
Engine model International Harvester C-123
Engine type Four-stroke, liquid-cooled, inline
Cylinders 4
Fuel type Gasoline
Displacement 2.0 L, 2,010 cm2, (122.7 cu·in)
Bore and stroke 79.0 mm X 102.0 mm (3.11 in X 4.02 in)
Compression ratio 6.9:1
Horsepower 21.4 PS (15.7 kW; 21.1 HP) at rpm
Starter Electric
Oil capacity: 4.7 L (5 US. qt, 4.1 Imp. qt.)
Coolant capacity: 14.4 L (15.2 US. qt, 12.7 Imp. qt.)
Transmission and chassis
Chassis 4×2 2WD
Steering type Manual
Brakes Differential contracting band
Transmission model –
Transmission type Sliding gear
Gears 4 forward and 1 reverse
Speed Forward: 20.6 kmh (12.8 mph) Reverse: 5.0 (3.1 mph)
Tires
Front tires Ag: 5.00-15
Rear tires Ag: 11.2-24
Rear Hitch
Caterogy IH Fast Hitch (one-point)
PTO (Power take-off shaft)
Rear PTO type Transmission
Rear PTO speed 540 rpm
