Fiat 980

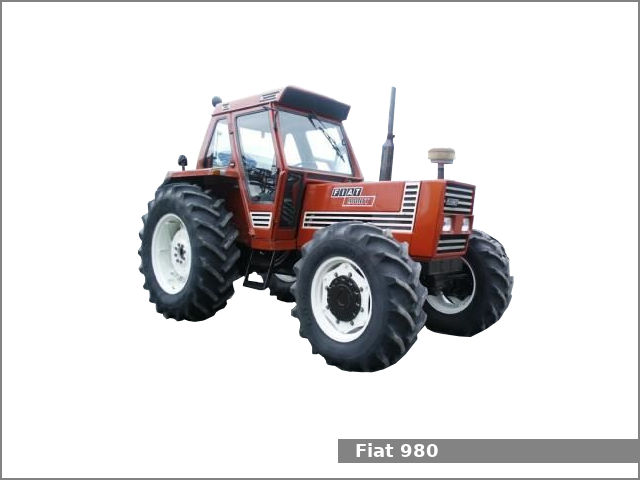

Fiat 980The Fiat 980 is a 2WD (980) or 4WD (980DT) tractor manufactured by Fiat in from 1979 to 1984. The Fiat 980 is equipped with a 5.2 L (316.2 cu·in) six-cylinder diesel engine and one of two transmissions: transmission with 12 forward and 3 reverse gears or transmission with 16 forward and 4 reverse gears.

The Fiat 980 tractor used the Fiat engine. It is a 5.2 L, 5,181 cm2, (316.2 cu·in) six-cylinder natural aspirated diesel engine with 100.0 mm (3.94 in) of the cylinder bore and 110.0 mm (4.33 in) of the piston stroke. This engine produced 99.4 PS (73.1 kW; 98.0 HP) at 2,400 rpm of output power.

The Fiat 980 is equipped with power steering, cab (standard), and 115.8 liters (30.6 US gal.; 25.5 Imp. gal) fuel tank.

Fiat 980 Specifications

General Specifications
ModelFiat 980
Length4,000 mm (157.5 in)
Height2,640 mm (103.9 in)
Wheel base2,540 mm (100 in)
Weight 2WD: 3,460 kg (7,628 lbs)
4WD: 4,180 kg (9,215 lbs)
Fuel tank capacity115.8 liters (30.6 US gal.; 25.5 Imp. gal)
Cabin typeCab (standard)
Engine modelFiat
Engine typeFour-stroke, liquid-cooled, inline
Fuel typeDiesel
Displacement5.2 L, 5,181 cm2, (316.2 cu·in)
Bore and stroke100.0 mm X 110.0 mm (3.94 in X 4.33 in)
Horsepower99.4 PS (73.1 kW; 98 HP) at 2,400 rpm
Transmission and chassis
Chassis4×2 2WD or 4×4 MFWD 4WD (optional)
Steering typePower
Transmission model
Transmission type
Gears12 forward and 3 reverse
Transmission model
Transmission type
Gears16 forward and 4 reverse
Front tires Ag: 7.50-20 (2WD), 12.4-28 (4WD)
Rear tires Ag: 16.9-38
Three-Point Hitch
Control type
Lift capacity (at ends)3,200 kg (7,056 lbs)
PTO (Power take-off shaft)
Rear PTO type
Rear PTO speed540/1000 rpm
Hydraulic system
Hydraulic type
Pump flow41.3 gpm (156.3 lpm)
