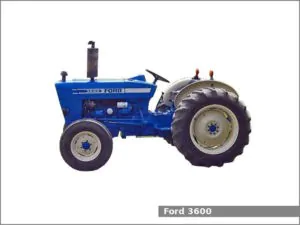

The Ford 3600 is a 2WD utility tractor manufactured by Ford from 1975 to 1981.
The Ford 3600 used one of two engines: a 2.9 L (175.0 cu·in) three-cylinder diesel engine or a 2.9 L (175.0 cu·in) three-cylinder gasoline engine and one of two transmissions: a gear type transmission with 6 forward and 2 reverse gears or a synchromesh transmission with dry disc clutch and 8 forward and 2 reverse gears.
The Ford 3600 is equipped with power steering, differential mechanical expanding shoe brakes, open operator station or two-post ROPS (optional), and 49.2 liters (13 US gal.; 10.8 Imp. gal) fuel tank.
The tractor could be equipped with the following engines:
- Ford diesel engine. It is a 2.9 L, 2,867 cm2, (175.0 cu·in) three-cylinder natural aspirated diesel engine with 107.0 mm (4.21 in) of the cylinder bore and 107.0 mm (4.21 in) of the piston stroke. The compression ratio rating is 16.3:1. This engine produced 48.7 PS (35.8 kW; 48.0 HP) at 2,000 rpm of output power and 183.1 N·m (18.7 kg·m, 134.9 ft·lb) at 1,400 rpm of torque.
- Ford gas engine. It is a 2.9 L, 2,867 cm2, (175.0 cu·in) three-cylinder natural aspirated gasoline engine. The cylinder bore is 107.0 mm (4.21 in) and the piston stroke is 107.0 mm (4.21 in). The compression ratio rating is 7.75:1. This engine produced 46.6 PS (34.3 kW; 46.0 HP) at 2,000 rpm of output power and 183.1 N·m (18.7 kg·m, 134.9 ft·lb) at 1,100 rpm of torque.
Following attachments are available for the Ford 3600 utility tractor:
- Ford 730 loader
- Ford 772A loader
Ford 3600 Specifications
| General Specifications | |
| Model | Ford 3600 |
| Length | 3,220 mm (126.8 in) |
| Width | 1,620 mm (63.8 in) |
| Height (hood) | 1,370 mm (53.9 in) |
| Wheel base | 1,920 mm (75.6 in) |
| Weight |
With 6-speed transmission: 2,000 kg (4,410 lbs) With 8-speed transmission and Cab: 2,530 kg (5,590 lbs) |
| Fuel tank capacity | 49.2 liters (13 US gal.; 10.8 Imp. gal) |
| Battery | 12V, 77Ah (gas), 128Ah (diesel) |
| Cabin type | Open operator station or two-post ROPS (optional) |
| Engine | |
| Engine model | Ford |
| Engine type | Four-stroke, liquid-cooled, inline |
| Cylinders | 3 |
| Fuel type | Diesel |
| Displacement | 2.9 L, 2,867 cm2, (175.0 cu·in) |
| Bore and stroke | 107.0 mm X 107.0 mm (4.21 in X 4.21 in) |
| Compression ratio | 16.3:1 |
| Horsepower | 48.7 PS (35.8 kW; 48.0 HP) at 2,000 rpm |
| Torque | 183.1 N·m (18.7 kg·m, 134.9 ft·lb) at 1,400 rpm |
| Starter | Electric |
| Oil capacity: | 6.6 L (7 US. qt, 5.8 Imp. qt.) |
| Coolant capacity: | 10.4 L (11 US. qt, 9.2 Imp. qt.) |
| Engine | |
| Engine model | Ford |
| Engine type | Four-stroke, liquid-cooled, inline |
| Cylinders | 3 |
| Fuel type | Gasoline |
| Displacement | 2.9 L, 2,867 cm2, (175.0 cu·in) |
| Bore and stroke | 107.0 mm X 107.0 mm (4.21 in X 4.21 in) |
| Compression ratio | 7.75:1 |
| Horsepower | 46.6 PS (34.3 kW; 46.0 HP) at 2,000 rpm |
| Torque | 183.1 N·m (18.7 kg·m, 134.9 ft·lb) at 1,100 rpm |
| Starter | Electric |
| Oil capacity: | 6.6 L (7 US. qt, 5.8 Imp. qt.) |
| Coolant capacity: | 10.4 L (11 US. qt, 9.2 Imp. qt.) |
| Transmission and chassis | |
| Chassis | 4×2 2WD |
| Steering type | Power |
| Brakes | Differential mechanical expanding shoe |
| Transmission model | – |
| Transmission type | Gear type |
| Gears | 6 forward and 2 reverse |
| Speed | Forward: 28.0 kmh (17.4 mph) Reverse: 11.3 (7 mph) |
| Transmission oil capacity | 13.1 L (3.5 US. gal, 2.9 Imp. gal.) |
| Transmission model | Dual-Range |
| Transmission type | Synchromesh with dry disc cluch |
| Gears | 8 forward and 2 reverse |
| Speed | Forward: 28.0 kmh (17.4 mph) Reverse: 13.5 (8.4 mph) |
| Transmission oil capacity | 13.1 L (3.5 US. gal, 2.9 Imp. gal.) |
| Tires | |
| Front tires | Ag: 6.00-16 |
| Rear tires | Ag: 12.4-28 |
| Three-Point Hitch | |
| Caterogy | I |
| Control type | Top-link draft sensing |
| Lift capacity (at ends) | 880 kg (1,940 lbs) |
| PTO (Power take-off shaft) | |
| Rear PTO type | Transmission or live (optional) |
| Rear PTO speed | 540 rpm |
| Hydraulic system | |
| Hydraulic type | – |
| Hydraulic capacity | 23.3 L (6.2 US gal, 5.1 Imp. gal) |
| Pressure | 2100 psi (144.8 bar) |
| Pump flow | 8.5 gpm (32.2 lpm) |
