Ford 4100

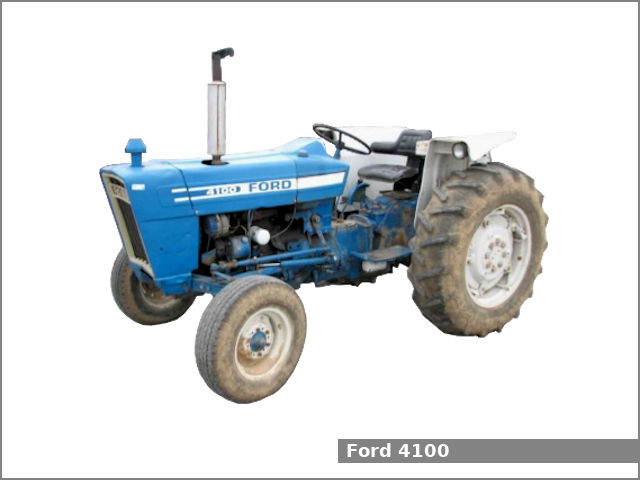

Ford 4100The Ford 4100 is a 2WD utility tractor from the series. This tractor was manufactured by Ford from 1975 to 1981. The Ford 4100 is equipped with a 3.0 L (183.0 cu·in) three-cylinder diesel engine and a transmission with 8 forward and 2 reverse gears.

The Ford 4100 utility tractor used the Ford engine. It is a 3.0 L, 2,998 cm2, (182.9 cu·in) three-cylinder natural aspirated diesel engine with 107.0 mm (4.21 in) of the cylinder bore and 112.0 mm (4.41 in) of the piston stroke. The compression ratio rating is 16.3:1. This engine produced 52.8 PS (38.8 kW; 52.0 HP) at 2,200 rpm of output power.

The Ford 4100 is equipped with power steering, mechanical wet disc brakes, an open operator station or Cab (optional), and 49.2 liters (13 US gal.; 10.8 Imp. gal) fuel tank.

Ford 4100 Specifications

General Specifications
Model Ford 4100
Length 3,460 mm (136.2 in)
Width 1,790 mm (70.5 in)
Height
Wheel base 1,960 mm (77.2 in)
Ground clearance 430 mm (16.9 in)
Weight
Fuel tank capacity 49.2 liters (13 US gal.; 10.8 Imp. gal)
Battery 12V
Cabin type Open operator station or Cab (optional)
Engine
Engine model Ford
Engine type Four-stroke, liquid-cooled, inline
Cylinders 3
Fuel type Diesel
Displacement 3.0 L, 2,998 cm2, (183.0 cu·in)
Bore and stroke 107.0 mm X 112.0 mm (4.21 in X 4.41 in)
Compression ratio 16.3:1
Horsepower 52.8 PS (38.8 kW; 52.0 HP) at 2,200 rpm
Torque 187.1 N·m (19.1 kg·m, 137.9 ft·lb) at 1,600 rpm
Starter Electric
Oil capacity: 6.6 L (7 US. qt, 5.8 Imp. qt.)
Coolant capacity: 10.4 L (11 US. qt, 9.2 Imp. qt.)
Transmission and chassis
Chassis 4×2 2WD
Steering type Power
Brakes Mechanical wet disc
Differential lock Mechanical rear
Transmission model
Transmission type
Gears 8 forward and 2 reverse
Speed Forward: 24.1 kmh (15 mph) Reverse: 11.6 kmh (7.2 mph)
Tires
Front tires Ag: 7.50-16
Rear tires Ag: 14.9-28
Three-Point Hitch
Category I
Control type
Lift capacity (at ends) 1,395 kg (3,075 lbs)
PTO (Power take-off shaft)
Rear PTO type Independent
Rear PTO speed 540 rpm
