Ford 860

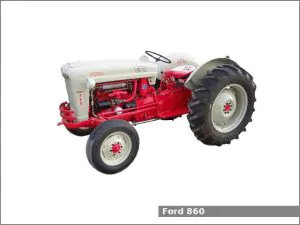

Ford 860The Ford 860 is a 2WD utility tractor from the 800 series. This tractor was manufactured by Ford in Highland Park, Michigan, USA from 1954 to 1957. The Ford 860 is equipped with a 2.8 L (172.0 cu·in) four-cylinder gasoline/LP-gas engine and a unsynchronized gear with dry disc clutch transmission with 5 forward and 1 reverse gears.

The Ford 860 utility tractor used the Ford EAF engine. It is a 2.8 L, 2,818 cm2, (172.0 cu·in) four-cylinder natural aspirated gasoline/LP-gas engine with 99.0 mm (3.9 in) of the cylinder bore and 91.0 mm (3.58 in) of the piston stroke. The compression ratio rating is 6.75:1 for gasoline version or 8.0:1 for LP-gas version.

The Ford 860 is equipped with manual or power assist (optional) steering, differential mechanical expanding shoe brakes, open operator station and 53.0 liters (14 US gal.; 11.7 Imp. gal) fuel tank.

Ford 800 Series tractor variants

  • 820 No 3-point or hydraulics
  • 850 Transmission PTO
  • 860 Live PTO

Ford 860 Specifications

General Specifications
ModelFord 860
Length3,090 mm (121.7 in)
Width1,640 mm (64.6 in)
Height1,500 mm (59.1 in)
Wheel base1,900 mm (74.8 in)
Ground clearance530 mm (20.9 in)
Weight (operating)1,540 kg (3,395 lbs)
Fuel tank capacity53.0 liters (14 US gal.; 11.7 Imp. gal)
Cabin typeOpen operator station
Engine modelFord EAF
Engine typeFour-stroke, liquid-cooled, inline
Fuel typeGasoline/LP-gas
Displacement2.8 L, 2,818 cm2, (172.0 cu·in)
Bore and stroke99.0 mm X 91.0 mm (3.9 in X 3.58 in)
Compression ratio6.75:1
Oil capacity:4.7 L (5 US. qt, 4.1 Imp. qt.)
Coolant capacity:14.2 L (15 US. qt, 12.5 Imp. qt.)
Transmission and chassis
Chassis4×2 2WD
Steering typeManual or power assist (optional)
BrakesDifferential mechanical expanding shoe
Transmission model
Transmission typeUnsynchronized gear with dry disc clutch
Gears5 forward and 1 reverse
Speed Forward: 18.9 kmh (11.7 mph) Reverse: 6.1 kmh (3.8 mph)
Transmission oil capacity7.6 L (2 US. gal, 1.7 Imp. gal.)
Front tires Ag: 6×16
Rear tires Ag: 12×28
Three-Point Hitch
Control type
Lift capacity567 kg (1,250 lbs)
PTO (Power take-off shaft)
Rear PTO typeLive
Rear PTO speed540 rpm
Hydraulic system
Hydraulic type
Hydraulic capacity7.6 L (2 US. gal, 1.7 Imp. gal.)
