International Harvester 234

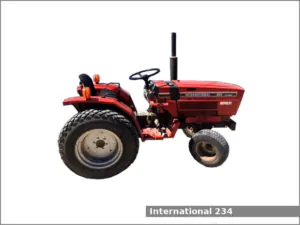

International Harvester 234The International Harvester 234 is a 2WD or 4WD compact utility tractor manufactured by Mitsubishi in Japan for distributor International Harvester from 1982 to 1984. The International 234 is equipped with a 0.8 L (51.8 cu·in) three-cylinder diesel engine and one of two transmissions: a gear type transmission with 6 forward and 2 reverse gears or a hydrostatic transmission with infinite forward and reverse gears.

The IH 234 compact utility tractor used the Mitsubishi engine. It is a 0.8 L, 849 cm2, (51.8 cu·in) three-cylinder natural aspirated diesel engine with 68.0 mm (2.68 in) of the cylinder bore and 78.0 mm (3.07 in) of the piston stroke. This engine produced 18.2 PS (13.4 kW; 18.0 HP) at 2,700 rpm of output power.

International Harvester 234 Specifications

General Specifications
ModelInternational Harvester 234
Length2,620 mm (103.1 in)
Width930 mm (36.6 in)
Height1,170 mm (46.1 in)
Wheel base1,420 mm (55.9 in)
Weight550 kg (1,213 lbs)
Fuel tank capacity18.2 liters (4.8 US gal.; 4 Imp. gal)
Battery
Cabin typeTwo-post ROPS
Engine
Engine modelMitsubishi
Engine typeFour-stroke, liquid-cooled, inline
Cylinders3
Fuel typeDiesel
Displacement0.8 L, 849 cm2, (51.8 cu·in)
Bore and stroke68.0 mm X 78.0 mm (2.68 in X 3.07 in)
Horsepower18.2 PS (13.4 kW; 18.0 HP) at 2,700 rpm
StarterElectric
Oil capacity:3.0 L (3.2 US. qt, 2.6 Imp. qt.)
Coolant capacity:4.9 L (5.2 US. qt, 4.3 Imp. qt.)
Transmission and chassis
Chassis4×2 2WD or 4×4 FWA 4WD (optional)
Steering type
Brakes
Transmission model
Transmission typeGear type
Gears6 forward and 2 reverse
Speed Forward: 16.3 kmh (10.1 mph) Reverse: 7.4 (4.6 mph)
Transmission oil capacity11.7 L (3.1 US. gal, 2.6 Imp. gal.)
Transmission model
Transmission typeHydrostatic
GearsInfinite forward and reverse
Tires
Front tiresAg:
Rear tiresAg:
Three-Point Hitch
CaterogyI
Control type
Lift capacity (at ends)
PTO (Power take-off shaft)
Front PTO typeIndependent (optional)
Front PTO speed2,700 rpm
Rear PTO typeTransmission
Rear PTO speed540 rpm
Hydraulic system
Hydraulic type
Hydraulic capacity11.7 L (3.1 US. gal, 2.6 Imp. gal.)
