Iseki TU1700

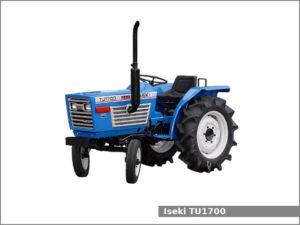

Iseki TU1700The Iseki TU1700 is a 2WD or 4WD (TU1700F) compact utility tractor manufactured by Iseki in Japan from 1981 to 1984. The Iseki TU1700 is equipped with a 1.2 L (71.4 cu·in) three-cylinder diesel engine and a gear type transmission with 12 forward and 4 reverse gears.

The Iseki TU1700 compact utility tractor used the Isuzu 3AF1 engine. It is a 1.2 L, 1,170 cm2, (71.4 cu·in) three-cylinder natural aspirated diesel engine with 76.0 mm (2.99 in) of the cylinder bore and 86.0 mm (3.39 in) of the piston stroke. This engine produced 17.0 PS (12.5 kW; 16.8 HP) at 2,300 rpm of output power and 58.9 N·m (6 kg·m, 43.4 ft·lb) at 1,400 rpm of torque.

Iseki TU1700 Specifications

General Specifications
Model Iseki TU1700
Length 2,610 mm (102.8 in)
Width 2WD: 1,120 mm (44.1 in)
4WD: 1,160 mm (45.7 in)
Height 1,930 mm (76 in)
Wheel base 1,340 mm (52.8 in)
Ground clearance 2WD: 320 mm (12.6 in)
4WD: 280 mm (11 in)
Weight 2WD: 700 kg (1,543 lbs)
4WD: 715 kg (1,576 lbs)
Fuel tank capacity 22.0 liters (5.8 US gal.; 4.8 Imp. gal)
Battery 12V
Cabin type Open operator station
Engine
Engine model Isuzu 3AF1
Engine type Four-stroke, liquid-cooled, inline
Cylinders 3
Fuel type Diesel
Displacement 1.2 L, 1,170 cm2, (71.4 cu·in)
Bore and stroke 76.0 mm X 86.0 mm (2.99 in X 3.39 in)
Horsepower 17 PS (12.5 kW; 16.8 HP) at 2,300 rpm
Torque 58.9 N·m (6 kg·m, 43.4 ft·lb) at 1,400 rpm
Starter Electric
Oil capacity: 3.0 L (3.2 US. qt, 2.6 Imp. qt.)
Coolant capacity: 7.0 L (7.4 US. qt, 6.2 Imp. qt.)
Transmission and chassis
Chassis 4×2 2WD or 4×4 MFWD 4WD
Steering type
Brakes
Transmission model
Transmission type Gear type
Gears 12 forward and 4 reverse
Speed Forward: 14.3 kmh (8.9 mph) Reverse: 6.3 kmh (3.9 mph)
Transmission oil capacity 17.0 L (4.5 US. gal, 3.7 Imp. gal.)
Tires
Front tires Ag: 4.00-12 (2WD), 6-12 (4WD)
Rear tires Ag: 8.3-22
Three-Point Hitch
Category JIS0
Control type
Lift capacity (at ends)
PTO (Power take-off shaft)
Rear PTO type
Rear PTO speed 540 rpm
