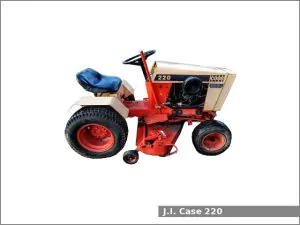

J.I. Case 220

J.I. Case 220The J.I. Case 220 is a 2WD garden tractor manufactured by J.I. Case in Winneconne, Wisconsin, USA from 1968 to 1988. The J.I. Case 220 is equipped with a 0.4 L (23.9 cu·in) single-cylinder gasoline engine and a hydrostatic transmission with infinite forward and reverse (2-range) gears.

The J.I. Case 220 garden tractor used the Kohler K241AS engine. It is a 0.4 L, 391 cm2, (23.9 cu·in) single-cylinder natural aspirated gasoline engine with 83.0 mm (3.27 in) of the cylinder bore and 73.0 mm (2.87 in) of the piston stroke. The compression ratio rating is 6.2:1. This engine produced 10.2 PS (7.5 kW; 10.0 HP) at 3,600 rpm of output power.

The J.I. Case 220 is equipped with manual steering, band brakes, an open operator station, and 11.4 liters (3 US gal.; 2.5 Imp. gal) fuel tank.

Following attachments are available for the J.I. Case 220 garden tractor:

  • Mid-mount J.I. Case 38 in (960 mm) mower deck
  • Mid-mount J.I. Case 44 in (1,110 mm) mower deck
  • Front-mount J.I. Case 44 in (1,110 mm) blade
  • Front-mount J.I. Case 38 in (960 mm) snowblower

J.I. Case 220 Specifications

General Specifications
Model J.I. Case 220
Length 1,650 mm (65 in)
Width 930 mm (36.6 in)
Height (steering wheel) 1,010 mm (39.8 in)
Wheel base 1,160 mm (45.7 in)
Ground clearance 180 mm (7.1 in)
Weight (shipping) 324 kg (714 lbs)
Fuel tank capacity 11.4 liters (3 US gal.; 2.5 Imp. gal)
Battery 12V, 24Ah
Cabin type Open operator station
Engine
Engine model Kohler K241AS
Engine type Four-stroke, air-cooled
Cylinders 1
Fuel type Gasoline
Displacement 0.4 L, 391 cm2, (23.9 cu·in)
Bore and stroke 83.0 mm X 73.0 mm (3.27 in X 2.87 in)
Compression ratio 6.2:1
Horsepower 10.2 PS (7.5 kW; 10.0 HP) at 3,600 rpm
Starter Electric
Oil capacity: 1.4 L (1.5 US. qt, 1.2 Imp. qt.)
Spark plug Champion RH10
Transmission and chassis
Chassis 4×2 2WD
Steering type Manual
Brakes Band
Transmission model HY-Drive
Transmission type Hydrostatic
Gears Infinite forward and reverse (2-range)
Speed Forward: 15.1 kmh (9.4 mph) Reverse: 15.1 kmh (9.4 mph)
Transmission oil capacity 6.2 L (1.6 US. gal, 1.4 Imp. gal.)
Tires
Front tires Ag: 6.50-8
Rear tires Ag: 8.00-16, 8.50-12, 10.50-12
Three-Point Hitch
Category Sleeve hitch
Control type
Lift capacity (at ends)
Hydraulic system
Hydraulic type Open center
Hydraulic capacity 5.7 L (1.5 US. gal, 1.3 Imp. gal.)
Pressure 2000 psi (137.9 bar)
Pump flow 8.0 gpm (30.3 lpm)
