John Deere 1025R

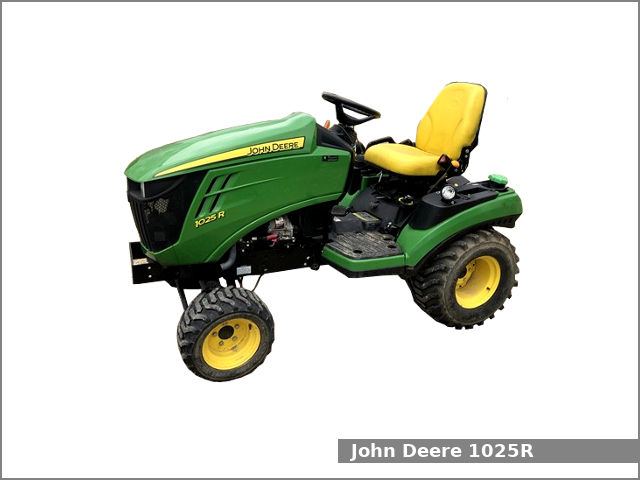

John Deere 1025RThe John Deere 1025R is a 4WD sub-compact utility tractor from the Sub-Compact 1 Series. This tractor has been manufactured by the John Deere company in Augusta, Georgia, USA since 2013. The 1025R tractor is equipped with 1.3 L three-cylinders diesel engine and hydrostatic transmission with 2 forward and 2 reverse gears.

The JD 1025R tractor used 1.3 L, 1,267 cm2, (77.32 cu·in) three-cylinder Yanmar 3TNV80F-NCJT diesel engine with 80.0 mm (3.15 in) of cylinder bore and 84.0 mm (3.31 in) of piston stroke. The Yanmar 3TNV80F-NCJT has an indirect injection fuel system, glow plugs pre-heating system (standard) and dry type air cleaner with safety element. The compression ratio rating is 23.5:1. This engine produced 24.2 PS (17.8 kW; 23.9 HP) of gross horsepower or 18.2 PS (13.4 KW; 18 HP) of manufacturer’s estimated PTO horsepower. Maximum torque is 62.0 Nm (6.32 kg·m; 45.76 ft·lb) and torque at rated engine speed (3,200 rpm) is 53.1 Nm (5.42 kg·m; 39.19 ft·lb).

The John Deere 1025R is equipped with hydrostatic power steering, wet disc brakes, a semi-flat platform with two-post ROPS (Rollover protection structure) and 21.2 liters (5.6 US gal.; 4.7 Imp. gal) fuel tank.

Following attachments are available for John Deere 1025R tractor:

  • John Deere 54D mid-mount 1,370 mm (54 in) mower deck
  • John Deere 60D 7-Iron mid-mount 1,520 mm (60 in) mower deck
  • Front-mount 1,370 mm (54 in) blade
  • John Deere D120 loader
  • John Deere H120 loader
  • John Deere 260 backhoe

John Deere 1025R Specifications

General Specifications
Model John Deere 1025R
Length 2,750 mm (108.3 in)
Width 1,200 mm (47.2 in)
Height 1,050 mm (41.3 in)
Wheel base 1,450 mm (57.1 in)
Weight Operated: 655 kg (1,444 lbs)
With JD D120 loader and JD 260 backhoe: 1,150 kg (2,530 lbs)
With JD H120 loader and JD 260 backhoe: 1,180 kg (2,600 lbs)
Fuel tank capacity 21.2 liters (5.6 US gal.; 4.7 Imp. gal)
Battery 12V 40A
Cabin type Two-post foldable ROPS on semi-flat platform.
Engine
Engine model Yanmar 3TNV80F-NCJT
Engine type Four-stroke, liquid-cooled, inline
Cylinders 3
Fuel type Diesel
Displacement 1.3 L, 1,267 cm2, (77.3 cu·in)
Bore and stroke 80.0 mm X 84.0 mm (3.15 in X 3.31 in)
Compression ratio 23.5:1
Horsepower 24.2 PS (17.8 kW; 23.9 HP)
Torque 53.1 N·m (5.4 kg·m, 39.1 ft·lb)
Starter Electric
Oil capacity: 2.7 L (2.85 US. qt, 2.38 Imp. qt.)
Coolant capacity: 3.7 L (3.91 US. qt, 3.26 Imp. qt.)
Transmission and chassis
Chassis 4×4 MFWD 4WD
Steering type Hydrostatic power
Brakes Wet disc
Final drive Spur gear
Transmission model
Transmission type Hydrostatic
Gears 2 forward and 2 reverse
Speed Forward: 14.6 kmh (9.1 mph) Reverse: 14.6 (9.1 mph)
Transmission and Hydraulic System capacity 12.3 L (13 US. qt, 10.82 Imp. qt.)
Front Axle 2.8 L (3.0 US. qt, 2.5 Imp. qt.)
Tires
Front tires Lawn/turf: 18×8.50-10;
Industrial: 18×8.50-10
Rear tires Lawn/turf: 26×12-12;
Industrial: 26×12-12
Three-Point Hitch
Caterogy I Limited
Control type
Lift capacity 534 kg (1,177 lbs)
PTO (Power take-off shaft)
Middle PTO type Independent
Middle PTO spped 2,100 rpm
Rear PTO type Independent with wet disc clutch
Rear PTO spped 540 rpm
Hydraulic system
Hydraulic type Open center
Hydraulic capacity 12.3 L (13 US. qt, 10.82 Imp. qt.)
Pressure 2000 psi (137.9 bar)
Valves 2 or 3
Pump flow 3.5 gpm (13.2 lpm)
Total flow 6.3 gpm (23.8 lpm)
Steering flow 2.8 gpm (10.6 lpm)
