John Deere 125

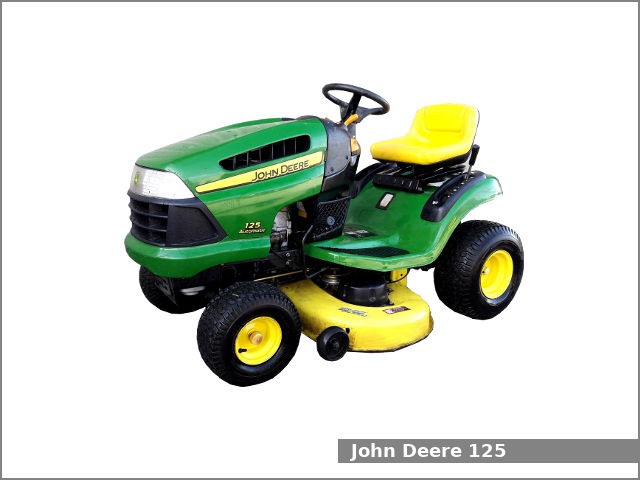

John Deere 125The John Deere 125 is a 2WD lawn tractor manufactured by the John Deere in Greeneville, Tennessee, USA during 2006. The John Deere 125 automatic lawn tractor is equipped with a 0.7 L V-twin gasoline engine and hydrostatic transmission with infinite forward and reverse gears.

The JD 125 lawn tractor used the Briggs & Stratton 44 engine. It is a 0.7 L, 724 cm2, (44.2 cu·in) V-twin natural aspirated gasoline engine with 75.4 mm (2.97 in) of the cylinder bore and 73.4 mm (2.89 in) of the piston stroke. This engine produced 20.3 PS (14.9 kW; 20.0 HP) of maximum output power.

The John Deere 125 is equipped with manual steering, open operator station, 8.0 liters (2.1 US gal.; 1.8 Imp. gal) fuel tank, mid-mount 42 inches (1,060 mm) mower deck with two-blades and manual lift.

John Deere 125 Specifications

General Specifications
Model John Deere 125
Length 1,750 mm (68.9 in)
Width 1,310 mm (51.6 in)
Height 1,080 mm (42.5 in)
Wheel base 1,240 mm (48.8 in)
Weight 210 kg (463 lbs)
Fuel tank capacity 8.0 liters (2.1 US gal.; 1.8 Imp. gal)
Battery 12V, Type BCI Group U1
Cabin type Open operator station
Engine
Engine model Briggs & Stratton 44
Engine type Four-stroke, air-cooled, V-twin
Cylinders 2
Fuel type Gasoline
Displacement 0.7 L, 724 cm2, (44.2 cu·in)
Bore and stroke 75.4 mm X 73.4 mm (2.97 in X 2.89 in)
Horsepower 20.3 PS (14.9 kW; 20.0 HP)
Starter Electric
Oil type SAE 10W-30; API: SG or SF
Oil capacity: 1.9 L (2 US. qt, 1.7 Imp. qt.)
Intake valve clearance 0.102-0.152 mm (0.004-0.006 in)
Exhaust valve clearance 0.102-0.152 mm (0.004-0.006 in)
Spark plug gap 0.76 mm (0.030 in)
Transmission and chassis
Chassis 4×2 2WD
Steering type Manual
Brakes
Transmission model Tuff Torq T40
Transmission type Hydrostatic
Gears Infinite forward and reverse
Speed Forward: 8.9 kmh (5.5 mph) Reverse: 5.2 (3.2 mph)
Tires
Front tires Lawn/turf: 15×6.00-6
Rear tires Lawn/turf: 20×8.0-8
PTO (Power take-off shaft)
Middle PTO type With manual clutch
Middle PTO spped
