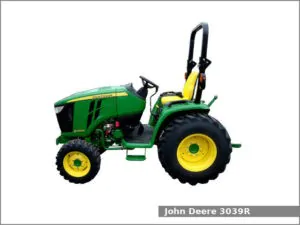

John Deere 3039RThe John Deere 3039R is a 4WD compact utility tractor from the 3R series. This tractor has been manufactured by John Deere in Augusta, Georgia, USA since 2014. The JD 3039R is equipped with a 1.6 L three-cylinder diesel engine and one of two transmissions: hydrostatic transmission with infinite (3-range) forward and reverse gears or power shuttle transmission with 12 forward and 12 reverse gears.

The John Deere 3039R compact utility tractor used the Yanmar 3TNV86 engine. It is a 1.6 L, 1,599 cm2, (97.6 cu·in) three-cylinder turbocharged diesel engine with 86.0 mm (3.39 in) of the cylinder bore and 90.0 mm (3.54 in) of the piston stroke. This engine produced 39.6 PS (29.1 kW; 39.0 HP) at 2,600 rpm of output power.

The John Deere 3039R is equipped with power steering, wet disc brakes, two-post foldable ROPS or Cab with air-conditioning (optional) and 44.7 liters (11.8 US gal.; 9.8 Imp. gal) fuel tank for Cab version or 51.1 liters (13.5 US gal.; 11.2 Imp. gal) for ROPS version.

Following attachments are available for the JD 3039R compact utility tractor:

  • Mid-mount John Deere 60D 60 in (1,540 mm) mower deck
  • Mid-mount John Deere 72D 72 in (1,840 mm) mower deck
  • John Deere H160 loader
  • John Deere H165 loader

John Deere 3039R Specifications

General Specifications
Model John Deere 3039R
Length
Width
Height ROPS: 2,360 mm (92.9 in)
Cab: 2,150 mm (85.0 in)
Wheel base 1,720 mm (67.7 in)
Weight ROPS: 1,315 kg (2,900 lbs)
Cab: 1,620 kg (3,570 lbs)
Fuel tank capacity ROPS: 51.1 liters (13.5 US gal.; 11.2 Imp. gal)
Cab: 44.7 liters (11.8 US gal.; 9.8 Imp. gal)
Battery 12V
Cabin type Two-post foldable ROPS or Cab with air-conditioning (optional)
Engine
Engine model Yanmar 3TNV86
Engine type Four-stroke, liquid-cooled, inline
Cylinders 3
Fuel type Diesel
Displacement 1.6 L, 1,599 cm2, (97.6 cu·in)
Bore and stroke 86.0 mm X 90.0 mm (3.39 in X 3.54 in)
Horsepower 39.6 PS (29.1 kW; 39.0 HP) at 2,600 rpm
Starter Electric
Oil capacity: 4.3 L (4.5 US. qt, 3.8 Imp. qt.)
Coolant capacity: ROPS: 5.3 L (5.6 US. qt, 4.7 Imp. qt.)
Cab: 7.0 L (7.4 US. qt, 6.2 Imp. qt.)
Transmission and chassis
Chassis 4×4 MFWD 4WD
Steering type Power
Brakes Wet disc
Final drive Helical gear
Transmission model eHydro
Transmission type Hydrostatic
Gears Infinite (3-range) forward and reverse
Speed Forward: 29.8 kmh (18.5 mph) Reverse:
Transmission oil capacity 25.7 L (6.8 US. gal, 5.7 Imp. gal.)
Transmission model PowrReverser
Transmission type Power shuttle with wet disc clutch
Gears 12 forward and 12 reverse
Tires
Front tires Ag: 7.00-14
Rear tires Ag: 11.2-24
Rear Hitch
Caterogy I
Control type Position control
Lift capacity (at ends) 1,150 kg (2536 lbs)
Front Hitch
Caterogy O
Control type
Lift capacity (at ends) 560 kg (1,300 lbs)
PTO (Power take-off shaft)
Middle PTO type Independent with electro-hydraulic clutch
Middle PTO speed 2,100 rpm
Rear PTO type Independent with electro-hydraulic clutch
Rear PTO speed 540 rpm
Hydraulic system
Hydraulic type Open center
Hydraulic capacity 25.7 L (27.16 US. qt, 22.61 Imp. qt.)
Pump flow 8.6 gpm (32.6 lpm)
Steering flow 5.3 gpm (20.1 lpm)
Total flow 13.9 gpm (52.6 lpm)
