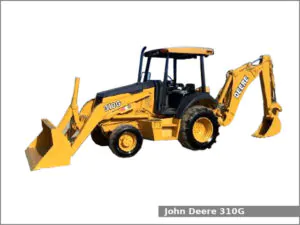

John Deere 310G

John Deere 310GThe John Deere 310G is a 2WD or 4WD backhoe loader tractor manufactured by John Deere from 2001 to 2007.

The John Deere 310G is equipped with one of two engines: a 4.5 L (276.0 cu·in) four-cylinder natural aspirated diesel engine or a 4.5 L (276.0 cu·in) four-cylinder turbocharged diesel engine and a transmission with 4 forward and 4 reverse gears.

The tractor could be equipped with the following engines:

  • John Deere 4045D. It is a 4.5 L, 4,523 cm2, (276.0 cu·in) four-cylinder natural aspirated diesel engine with 106.0 mm (4.17 in) of the cylinder bore and 127.0 mm (5 in) of the piston stroke. This engine produced 74 PS (54.4 kW; 73 HP) at 2,000 rpm of output power.
  • John Deere 4045T. It is a 4.5 L, 4,523 cm2, (276.0 cu·in) four-cylinder turbocharged diesel engine. The cylinder bore is 106.0 mm (4.17 in) and the piston stroke is 127.0 mm (5 in). This engine produced 79.8 PS (58.7 kW; 78.7 HP) at 2,000 rpm of output power.

The JD 310G is equipped with hydrostatic power steering, hydraulic wet disc brakes, ROPS or cab with heat and A/C (optional) and 136.3 liters (36 US gal.; 30 Imp. gal) fuel tank.

John Deere 310G Specifications

General Specifications
Model John Deere 310G
Length 7,080 mm (278.7 in)
Width 2,180 mm (85.8 in)
Height 2,740 mm (107.9 in)
Wheel base –
Ground clearance 300 mm (11.8 in)
Weight 2WD with ROPS: 5,805 kg (12,800 lbs)
4WD with Cab: 6,845 kg (15,090 lbs)
Fuel tank capacity 136.3 liters (36 US gal.; 30 Imp. gal)
Battery One or two 12V, CCA: 950A
Cabin type ROPS or cab with heat and A/C (optional)
Engine
Engine model John Deere 4045D
Engine type Four-stroke, liquid-cooled, inline
Cylinders 4
Fuel type Diesel
Displacement 4.5 L, 4,523 cm2, (276.0 cu·in)
Bore and stroke 106.0 mm X 127.0 mm (4.17 in X 5 in)
Horsepower 74 PS (54.4 kW; 73 HP) at 2,000 rpm
Torque 292.9 N·m (29.9 kg·m, 215.9 ft·lb) at 1,400 rpm
Starter Electric
Oil capacity: 8.5 L (9 US. qt, 7.5 Imp. qt.)
Coolant capacity: 16.1 L (17 US. qt, 14.2 Imp. qt.)
Engine
Engine model John Deere 4045T
Engine type Four-stroke, liquid-cooled, inline
Cylinders 4
Fuel type Diesel
Displacement 4.5 L, 4,523 cm2, (276.0 cu·in)
Bore and stroke 106.0 mm X 127.0 mm (4.17 in X 5 in)
Horsepower 79.8 PS (58.7 kW; 78.7 HP) at 2,000 rpm
Torque 292.9 N·m (29.9 kg·m, 215.9 ft·lb) at 1,400 rpm
Starter Electric
Oil capacity: 13.0 L (13.7 US. qt, 11.4 Imp. qt.)
Coolant capacity: 16.1 L (17 US. qt, 14.2 Imp. qt.)
Transmission and chassis
Chassis 4×2 2WD or 4×4 MFWD 4WD
Steering type Hydrostatic power
Brakes Hydraulic wet disc
Transmission model –
Transmission type –
Gears 4 forward and 4 reverse
Speed Forward: 33.0 kmh (20.5 mph) Reverse: 33.0 (20.5 mph)
Transmission oil capacity 15.1 L (4 US. gal, 3.3 Imp. gal.)
Tires
Front tires Industrial: 11L-15
Rear tires Industrial: 16.9-24
Hydraulic system
Hydraulic type Open center
Hydraulic capacity 90.8 L (95.95 US. qt, 79.89 Imp. qt.)
Pressure Backhoe: 3625 psi (249.9 bar)
Loader: 2750 psi (189.6 bar)
Total flow 28.0 gpm (106 lpm)
