John Deere 5085M (2015-2018)

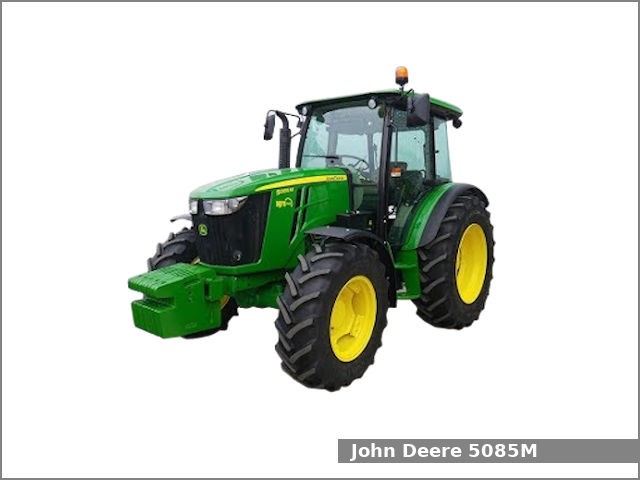

John Deere 5085M (2015-2018)The John Deere 5085M is a 2WD or 4WD utility tractor from the 5M series. This tractor was manufactured by John Deere in Augusta, Georgia, USA from 2008 to 2018. This third generation was manufactured from 2015 to 2018. The 3-rd gen JD 5085M is equipped with a 4.5 L (276.0 cu·in) four-cylinder diesel engine and one of two transmissions: a partially synchronized with power shuttle transmission with 16 forward and 16 reverse gears or a partially synchronized with power shuttle transmission with 32 forward and 16 reverse gears.

The John Deere 5085M utility tractor used the John Deere 4045PWL engine. It is a 4.5 L, 4,523 cm2, (276.0 cu·in) four-cylinder turbocharged diesel engine with 106.0 mm (4.17 in) of the cylinder bore and 127.0 mm (5 in) of the piston stroke. This engine produced 86.2 PS (63.4 kW; 85 HP) at 2,100 rpm of output power.

The JD 5085M is equipped with power steering, hydraulic wet disc brakes, isolated open operator station with foldable two-post ROPS, premium open station (optional, standard or premium cabs (optional), and 113.6 liters (30 US gal.; 25 Imp. gal) fuel tank for ROPS version or 140.0 liters (37.0 US gal, 30.8 Imp. gal) for the cab version.

Following attachments are available for the John Deere 5085M utility tractor:

  • John Deere H260 NSL loader
  • John Deere H260 MSL loader
  • John Deere H310 NSL loader

John Deere 5085M Specifications

General Specifications
Model John Deere 5085M
Length 4,140 mm (163 in)
Width
Height ROPS: 2,500 mm (98.4 in)
Cab: 2,570 mm (101.2 in)
Wheel base 2,340 mm (92.1 in)
Weight (shipping) 2WD ROPS: 3,402 kg (7,500 lbs)
2WD Cab: 3,810 kg (8,400 lbs)
4WD ROPS: 3,628 kg (8,000 lbs)
4WD Cab: 4,037 kg (8,900 lbs)
Fuel tank capacity ROPS: 113.6 liters (30 US gal.; 25 Imp. gal)
Cas: 140.0 liters (37.0 US gal, 30.8 Imp. gal)
Battery 12V, CCA 925A
Cabin type Isolated open operator station with foldable two-post ROPS
Engine
Engine model John Deere 4045PWL
Engine type Four-stroke, liquid-cooled, inline
Cylinders 4
Fuel type Diesel
Displacement 4.5 L, 4,523 cm2, (276.0 cu·in)
Bore and stroke 106.0 mm X 127.0 mm (4.17 in X 5 in)
Horsepower 86.2 PS (63.4 kW; 85.0 HP) at 2,100 rpm
Starter Electric
Transmission and chassis
Chassis 4×2 2WD or 4×4 MFWD 4WD (optional)
Steering type Power
Brakes Hydraulic wet disc
Final drive Inboard planetary
Differential lock Ectro-hydraulic
Transmission model PowrReverser
Transmission type Partially synchronized with power shuttle
Gears 16 forward and 16 reverse
Transmission model PowrReverser Plus
Transmission type Partially synchronized with power shuttle
Gears 32 forward and 16 reverse
Tires
Front tires Ag: 12.4R24
Rear tires Ag: 18.4R30
Three-Point Hitch
Category II/I
Control type Lower-link draft sensing
Lift capacity (at ends) 2,090 kg (4,600 lbs)
2,540 kg (5,600 lbs)
PTO (Power take-off shaft)
Rear PTO type Independent with electro-hydraulic clutch
Rear PTO speed 540/540E or 540/540E/1000 (optional)
Hydraulic system
Hydraulic type Open center
Pump flow 18.4 gpm (69.7 lpm)
Steering flow 6.3 gpm (23.8 lpm)
Total flow 24.7 gpm (93.5 lpm)
