John Deere 5210

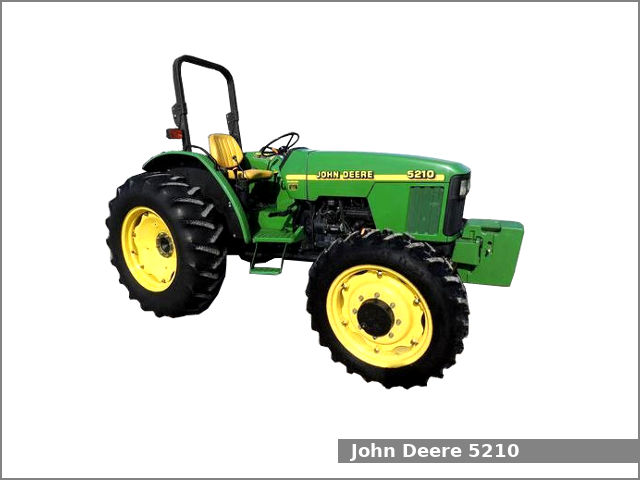

John Deere 5210The John Deere 5210 is a 2WD or 4WD utility tractor from the 5000 Ten series. This tractor was manufactured by John Deere in Augusta, Georgia, USA from 1998 to 2001. The JD 5210 is equipped with a 2.9 L three-cylinder diesel engine and one of three transmissions: Collar Shift, SyncShuttle or PowrReverser.

The John Deere 5210 utility tractor used the John Deere 3029D engine. It is a 2.9 L, 2,933 cm2, (179.0 cu·in) three-cylinder natural aspirated diesel engine with 106.0 mm (4.17 in) of the cylinder bore and 110.0 mm (4.33 in) of the piston stroke. The compression ratio rating is 17.8:1. This engine produced 53.7 PS (39.5 kW; 53.0 HP) at 2,400 rpm of output power and 162.0 N·m (16.5 kg·m, 119.4 ft·lb) at 1,400 rpm of torque.

The John Deere 5210 is equipped with hydrostatic power steering, hydraulic wet disc brakes, two-post ROPS (the Cab was available as an option) and 68.0 liters (18 US gal.; 15 Imp. gal) fuel tank for ROPS version or 87.0 liters (23 US gal, 19.1 Imp. gal) for the Cab version.

Following attachments are available for the John Deere 5210 utility tractor:

  • John Deere 521 loader
  • John Deere 541 loader
  • John Deere 541 Self-Leveling loader
  • John Deere 49 backhoe

John Deere 5210 Specifications

General Specifications
Model John Deere 5210
Length 2WD: 3,110 mm (122.4 in)
4WD: 3,190 mm (125.9 in)
Width 1,660 mm (65.4 in)
Height ROPS: 2,250 mm (88.6 in)
Cab: 2,460 mm (97.0 in)
Wheel base 2,040 mm (80.3 in)
Weight (shipping) 2WD with ROPS: 1,910 kg (4,210 lbs)
4WD with ROPS: 2,110 kg (4,650 lbs)
2WD with Cab: 2,390 kg (5,270 lbs)
4WD with Cab: 2,550 kg (5,630 lbs)
Fuel tank capacity ROPS: 68.0 liters (18 US gal.; 15 Imp. gal)
Cab: 87.0 liters (23 US gal, 19.1 Imp. gal)
Battery 12V, CCA 700A
Cabin type Two-post ROPS or Cab (optional).
Engine
Engine model John Deere 3029D
Engine type Four-stroke, liquid-cooled, inline
Cylinders 3
Fuel type Diesel
Displacement 2.9 L, 2,933 cm2, (179.0 cu·in)
Bore and stroke 106.0 mm X 110.0 mm (4.17 in X 4.33 in)
Compression ratio 17.8:1
Horsepower 53.7 PS (39.5 kW; 53.0 HP) at 2,400 rpm
Torque 162.0 N·m (16.5 kg·m, 119.4 ft·lb) at 1,400 rpm
Starter Electric
Oil capacity: 8.5 L (9 US. qt, 7.5 Imp. qt.)
Coolant capacity: 9.5 L (10 US. qt, 8.4 Imp. qt.)
Transmission and chassis
Chassis 4×2 2WD or 4×4 MFWD 4WD
Steering type Hydrostatic power
Brakes Hydraulic wet disc
Transmission model Collar Shift
Transmission type Unsynchronized gear with dry disc clutch
Gears 9 forward and 3 reverse
Speed Forward: 26.0 kmh (16.2 mph) Reverse: 22.0 (13.7 mph)
Transmission oil capacity 38.0 L (10 US. gal, 8.4 Imp. gal.)
Transmission model SyncShuttle
Transmission type Partially synchronized with dry disc clutch
Gears 9 forward and 3 reverse
Speed Forward: 26.0 kmh (16.2 mph) Reverse: 22.0 (13.7 mph)
Transmission oil capacity 28.0 L (7.4 US. gal, 6.2 Imp. gal.)
Transmission model PowrReverser
Transmission type Power shuttle with wet disc clutch
Gears 12 forward and 12 reverse
Speed Forward: 25.9 kmh (16.1 mph) Reverse: 29.9 (18.6 mph)
Transmission oil capacity 43.5 L (11.5 US. gal, 9.6 Imp. gal.)
Tires
Front tires Ag: 6.50-16 (2WD), 8.3-24 (4WD)
Rear tires Ag: 13.6-28
Three-Point Hitch
Caterogy II/I
Control type
Lift capacity (at 610 m / 24 in) 1,530 kg (3,375 lbs)
PTO (Power take-off shaft)
Rear PTO type Independent
Rear PTO speed 540, 540/540E rpm
Hydraulic system
Hydraulic type Open center
Hydraulic capacity 2855 L (3016.85 US. qt, 2512.05 Imp. qt.)
Valves 5
Pump flow 11.4 gpm (43.2 lpm)
Steering flow 6.8 gpm (25.7 lpm)
Total flow 18.2 gpm (68.9 lpm)
