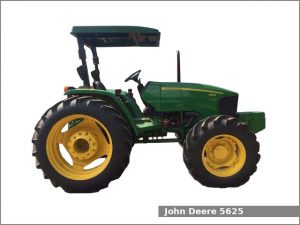

John Deere 5625

John Deere 5625The John Deere 5625 is a 2WD/4WD utility tractor from the 5025 series. This tractor was manufactured by John Deere in Saltillo, Mexico from 2006 to 2012. The John Deere 5625 is equipped with a 4.6 L (278.0 cu·in) four-cylinder diesel engine and a gear type with dry disc clutch transmission with 9 forward and 3 reverse gears.

The JD 5625 utility tractor used the John Deere engine. It is a 4.6 L, 4,555 cm2, (278.0 cu·in) four-cylinder diesel engine with 106.0 mm (4.17 in) of the cylinder bore and 127.0 mm (5 in) of the piston stroke. The compression ratio rating is 17.6:1. This engine produced 82.1 PS (60.4 kW; 81.0 HP) at 2,400 rpm of output power.

The John Deere 5625 is equipped with power steering, hydraulic wet disc brakes and 94.6 liters (25 US gal.; 20.8 Imp. gal) fuel tank.

John Deere 5625 Specifications

General Specifications
Model John Deere 5625
Length OOS: 3,560 mm (140.2 in)
IOOS: 3,790 mm (149.2 in)
Width 2,090 mm (82.3 in)
Height OOS: 2,540 mm (100 in)
IOOS: 2,600 mm (102.4 in)
Wheel base
Ground clearance (front axle) 2WD: 500 mm (19.7 in)
4WD: 410 mm (16.1 in)
Weight (shipping) 2WD OOS: 2,500 kg (5,512 lbs)
4WD OOS: 2,685 kg (5,922 lbs)
2WD IOOS: 2,955 kg (6,520 lbs)
4WD IOOS: 3,015 kg (6,647 lbs)
2WD Cab: 3,045 kg (6,710 lbs)
4WD Cab: 3,235 kg (7,130 lbs)
Fuel tank capacity OOS: 94.6 liters (25.0 US gal.; 20.8 Imp. gal)
IOOS/Cab: 140.0 liters (37.0 US gal.; 30.8 Imp. gal)
Battery 12V, CCA 550A
Cabin type Open operator station (OOS) with two-post fixed ROPS
Foldable ROPS (optional)
Isolate platform (IOOS) (optional)
Cab (optional)
Engine
Engine model John Deere
Engine type Four-stroke, liquid-cooled, inline
Cylinders 4
Fuel type Diesel
Displacement 4.6 L, 4,555 cm2, (278.0 cu·in)
Bore and stroke 106.0 mm X 127.0 mm (4.17 in X 5 in)
Compression ratio 17.6:1
Horsepower 82.1 PS (60.4 kW; 81.0 HP) at 2,400 rpm
Starter Electric
Oil capacity: 8.5 L (9 US. qt, 7.5 Imp. qt.)
Coolant capacity: 10.8 L (11.4 US. qt, 9.5 Imp. qt.)
Transmission and chassis
Chassis 4×2 2WD or 4×4 MFWD 4WD
Steering type Power
Brakes Hydraulic wet disc
Transmission model
Transmission type Gear type with dry disc clutch
Gears 9 forward and 3 reverse
Speed Forward: 26.4 kmh (16.4 mph) Reverse: 22.4 kmh (13.9 mph)
Transmission oil capacity 38.0 L (10 US. gal, 8.4 Imp. gal.)
Tires
Front tires Ag: 12.4×24
Rear tires Ag: 18.4×30
Three-Point Hitch
Category II/I
Control type Top-link draft sensing
Lift capacity (at 610 mm/24 in) 1530 kg (3374 lbs)
PTO (Power take-off shaft)
Rear PTO type Independent
Rear PTO speed 540 (1.375)
Hydraulic system
Hydraulic type Open center
Pressure 2800 psi (193.1 bar)
Pump flow 15.9 gpm (60.2 lpm)
Steering flow 6.6 gpm (25.0 lpm)
