John Deere 6410

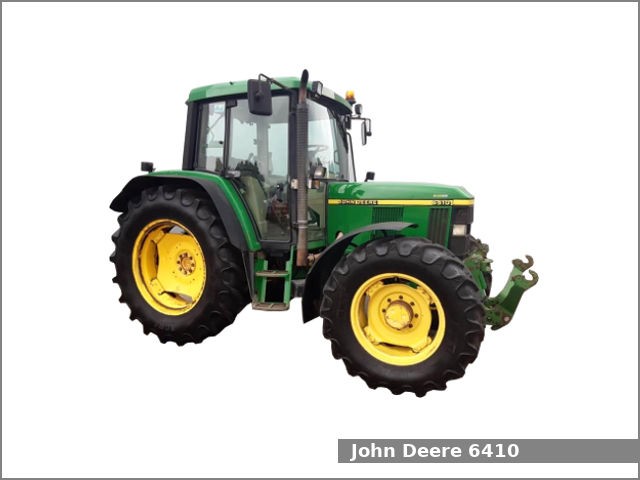

John Deere 6410The John Deere 6410 is a 2WD or 4WD utility tractor from the 6000 TEN series. This tractor was manufactured by John Deere in Mannheim, Baden-Württemberg, Germany from 1999 to 2002.

The John Deere 6410 is equipped with a 4.5 L (276.0 cu·in) four-cylinder turbocharged diesel engine and one of four transmissions: a fully synchronized transmission with wet disc clutch and 12 forward and 4 reverse gears, a four-speed power shift transmission with wet disc clutch and 16 forward and 16 reverse gears, a four-speed power shift transmission with hydraulic wet disc clutch and 16 forward and 16 reverse gears or a four-speed power shift transmission with hydraulic wet disc clutch and 24 forward and 24 reverse gears.

The JD 6410 utility tractor used the John Deere 4045TL056 engine. It is a 4.5 L, 4,523 cm2, (276.0 cu·in) four-cylinder turbocharged diesel engine with 106.0 mm (4.17 in) of the cylinder bore and 127.0 mm (5 in) of the piston stroke. The compression ratio rating is 17.8:1. This engine produced 105.5 PS (77.6 kW; 104.0 HP) at 2,300 rpm of output power and 440.7 N·m (44.9 kg·m, 324.8 ft·lb) at 1,400 rpm of torque.

The John Deere 6410 is equipped with power steering, differential hydraulic wet disc brakes, Two-post ROPS, or ComfortGard cab with air-conditioning (optional).

Following attachments are available for the JD 6410 utility tractor:

  • John Deere 620 loader
  • John Deere 640 loader
  • John Deere 640SL loader

John Deere 6410 Specifications

General Specifications
ModelJohn Deere 6410
Length4,130 mm (162.6 in)
Width2,030 mm (79.9 in)
Height ROPS: 2,800 mm (110.2 in)
Cab: 2,650 mm (104.6 in)
Wheel base2,400 mm (94.5 in)
Weight (operating)4WD Cab: 4,390 kg (9,678 lbs)
Fuel tank capacity 116.2 liters (30.7 US gal.; 25.6 Imp. gal)
165.0 liters (43.6 US gal.; 36.3 Imp. gal)
181.7 liters (48.0 US gal.; 40.0 Imp. gal)
Battery12V, CAA: 830A or 1230A
Cabin typeTwo-post ROPS or ComfortGard cab with air-conditioning (optional)
Engine
Engine modelJohn Deere 4045TL056
Engine typeFour-stroke, liquid-cooled, inline
Cylinders4
Fuel typeDiesel
Displacement4.5 L, 4,523 cm2, (276.0 cu·in)
Bore and stroke106.0 mm X 127.0 mm (4.17 in X 5 in)
Compression ratio17.8:1
Horsepower105.5 PS (77.6 kW; 104.0 HP) at 2,300 rpm
Torque440.7 N·m (44.9 kg·m, 324.8 ft·lb) at 1,400 rpm
StarterElectric
Oil capacity:12.0 L (12.7 US. qt, 10.6 Imp. qt.)
Coolant capacity: ROPS: 11.0 L (11.6 US. qt, 9.7 Imp. qt.)
Cab: 13.5 L (14.5 US. qt, 11.9 Imp. qt.)
Transmission and chassis
Chassis4×4 MFWD 4WD
Steering typePower
BrakesDifferential hydraulic wet disc
Transmission modelSyncroPlus
Transmission typeFully synchronized with wet disc clutch
Gears12 forward and 4 reverse
Speed Forward: 29.8 kmh (18.5 mph) Reverse: 20.3 (12.6 mph)
Transmission modelSyncroPlus Power Reverser
Transmission typeFour-speed power shift with wet disc clutch
Gears16 forward and 16 reverse
Speed Forward: 29.8 kmh (18.5 mph)
Transmission modelPowrQuad
Transmission typeFour-speed power shift with hydraulic wet disc clu
Gears16 forward and 16 reverse
Speed Forward: 29.8 kmh (18.5 mph)
Transmission modelPowrQuad
Transmission typeFour-speed power shift with hydraulic wet disc clu
Gears24 forward and 24 reverse
Speed Forward: 40.2 kmh (25.0 mph)
Tires
Front tiresAg: 7.50-18 (2WD), 13.6-24 (4WD)
Rear tiresAg: 18.4-34
Three-Point Hitch
CaterogyII
Control typeElectronic lower-link draft sensing
Lift capacity (at ends)2,683 kg (5,916 lbs)
PTO (Power take-off shaft)
Rear PTO typeIndependent
Rear PTO speed540/1,000 rpm
Hydraulic system
Hydraulic typeClosed center pressure-flow compensating
Pressure2900 psi (199.9 bar)
Valves1 to 4
Pump flow 25.4 gpm (96.1 lpm)
18.9 gpm (71.5 lpm)
