John Deere 6930

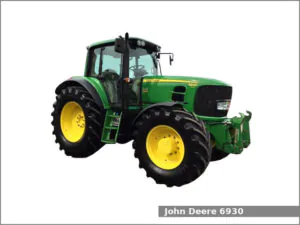

John Deere 6930The John Deere 6930 is a 4WD utility tractor manufactured by John Deere from 2006 to 2011. The John Deere 6930 is equipped with a 6.8 L (413.7 cu·in) six-cylinder diesel engine and one of two transmissions: a partial power shift transmission with 20 forward and 20 reverse gears and dual wet disc Perma-Clutch clutch or a partial power shift transmission with 32 forward and 32 reverse gears and dual wet disc Perma-Clutch clutch.

The John Deere 6930 utility tractor used the John Deere 6068HL281 engine. It is a 6.8 L, 6,779 cm2, (413.7 cu·in) six-cylinder turbocharged diesel engine with 106.0 mm (4.17 in) of the cylinder bore and 127.0 mm (5 in) of the piston stroke. This engine produced 157.2 PS (115.6 kW; 155.0 HP) at 2,100 rpm of output power and 695.6 N·m (70.9 kg·m, 512.7 ft·lb) at 1,500 rpm of torque.

The JD 6930 is equipped with power steering, hydraulic wet disc brakes, Cab with air-conditioning, and 250.0 liters (66 US gal.; 55 Imp. gal) fuel tank.

John Deere 6930 Specifications

General Specifications
Model John Deere 6930
Length 4,750 mm (187 in)
Width 2,380 mm (93.7 in)
Height 2,920 mm (115 in)
Wheel base 2,640 mm (103.9 in)
Weight (shipping) 5,630 kg (12,412 lbs)
Fuel tank capacity 250.0 liters (66 US gal.; 55 Imp. gal)
Optional: 325.0 liters (85.9 US gal.; 71.5 Imp. gal)
Battery 12V
Cabin type Cab with air-conditioning
Engine
Engine model John Deere 6068HL281
Engine type Four-stroke, liquid-cooled, inline
Cylinders 6
Fuel type Diesel
Displacement 6.8 L, 6,779 cm2, (413.7 cu·in)
Bore and stroke 106.0 mm X 127.0 mm (4.17 in X 5 in)
Horsepower 157.2 PS (115.6 kW; 155 HP) at 2,100 rpm
Torque 695.6 N·m (70.9 kg·m, 512.7 ft·lb) at 1,500 rpm
Starter Electric
Oil capacity: 19.5 L (20.6 US. qt, 17.2 Imp. qt.)
Coolant capacity: 28.0 L (29.6 US. qt, 24.6 Imp. qt.)
Transmission and chassis
Chassis 4×4 MFWD 4WD
Steering type Power
Brakes Hydraulic wet disc
Differential lock Rear electro-hydraulic wet disc
Transmission model John Deere PowrQuad Plus
Transmission type Partial power shift with dual wet disc Perma-Clutch clutch
Gears 20 forward and 20 reverse
Speed Forward: 38.6 kmh (24 mph) Reverse: (0 mph)
Transmission oil capacity 50.0 L (13.2 US. gal, 11 Imp. gal.)
Transmission model John Deere PowrQuad Plus Creeper
Transmission type Partial power shift with dual wet disc Perma-Clutc
Gears 32 forward and 32 reverse
Transmission oil capacity 50.0 L (13.2 US. gal, 11 Imp. gal.)
Tires
Front tires Ag: 16.9R28
Rear tires Ag: 20.8R38
Three-Point Hitch
Caterogy IIIN/II
Control type Load and depth control with electronic lower-link
Lift capacity (at ends) 7,590 kg (16,730 lbs)
Optional: 8,560 kg (18,880 lbs)
PTO (Power take-off shaft)
Front PTO type
Front PTO speed 1,000 rpm
Rear PTO type Independent with hydraulic wet disc clutch
Rear PTO speed 540/540E/1,000 rpm
Hydraulic system
Hydraulic type Constant flow or pressure and flow compensated (optional)
Pressure 2900 psi (199.9 bar)
Pump flow 21.4 gpm (81 lpm)
PFC pump flow 29.1 gpm (110.2 lpm)
ATTENTION! Dear visitors, this site is not a trading platform, an official dealer or a spare parts supplier, so we do not have any price lists, spare parts catalogs, service or owner manuals. We are an information portal and provide the technical specifications.

We try to use verified sources and official documentation, however, differences between sources or errors in entering information may occur. In addition, the characteristics may vary depending on the modification and market. We do not provide advice on technical issues related to the any operation or repair. We do not recommend using provided information for repairing or spare parts ordering, use only official service manuals and spare-parts catalogs.
