John Deere 710

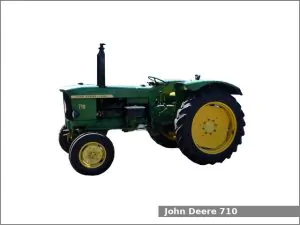

John Deere 710The John Deere 710 is a 2WD utility tractor manufactured by John Deere in Mannheim, Baden-Württemberg, Germany from 1966 to 1967. The John Deere 710 is equipped with a 3.3 L (202.6 cu·in) four-cylinder diesel engine and transmission with 10 forward and 3 reverse gears.

The JD 710 utility tractor used the John Deere 202D23L engine. It is a 3.3 L, 3,320 cm2, (202.6 cu·in) four-cylinder natural aspirated diesel engine with 98.0 mm (3.86 in) of the cylinder bore and 100.0 mm (3.94 in) of the piston stroke. This engine produced 50.7 PS (37.3 kW; 50.0 HP) at 2,400 rpm of output power.

The John Deere 710 is equipped with power steering, open operator station and 70.0 liters (18.5 US gal.; 15.4 Imp. gal) fuel tank.

John Deere 710 Specifications

General Specifications
Model John Deere 710
Length 3,530 mm (139 in)
Width
Height 2,400 mm (94.5 in)
Wheel base
Weight 2,295 kg (5,060 lbs)
Fuel tank capacity 70.0 liters (18.5 US gal.; 15.4 Imp. gal)
Battery
Cabin type Open operator station
Engine
Engine model John Deere 202D23L
Engine type Four-stroke, liquid-cooled, inline
Cylinders 4
Fuel type Diesel
Displacement 3.3 L, 3,320 cm2, (202.6 cu·in)
Bore and stroke 98.0 mm X 100.0 mm (3.86 in X 3.94 in)
Horsepower 50.7 PS (37.3 kW; 50 HP) at 2,400 rpm
Torque 179.0 N·m (18.3 kg·m, 131.9 ft·lb) at 1,300 rpm
Starter Electric
Transmission and chassis
Chassis 4×2 2WD
Steering type Power
Brakes
Transmission model
Transmission type
Gears 10 forward and 3 reverse
Speed Forward: 19.6 kmh (12.2 mph) Reverse: 8.0 kmh (5 mph)
Tires
Front tires Ag: 6.50-16
Rear tires Ag: 16.9-30
Three-Point Hitch
Category II
Control type
Lift capacity 1,750 kg (3,860 lbs)
PTO (Power take-off shaft)
Rear PTO type Live with 2-stage clutch
Rear PTO speed 540/1,000 rpm
Hydraulic system
Hydraulic type
Pump flow 4.2 gpm (15.9 lpm)
Power steering: 8.2 gpm (31.0 lpm)
