John Deere 7430 Premium

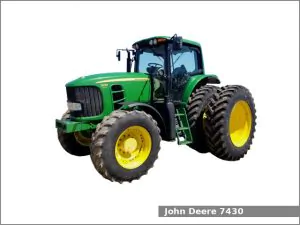

John Deere 7430 PremiumThe John Deere 7430 Premium is a 4WD row-crop tractor from the 7030 Small-Frame series. This tractor was manufactured by John Deere in Waterloo, Iowa, USA, and Mannheim, Baden-Württemberg, Germany from 2007 to 2011. The JD 7430 Premium is equipped with a 6.8 L (414.0 cu·in) six-cylinder diesel engine and one of three transmissions: a partial power shift transmission with 16 forward and 16 reverse gears, a partial power shift transmission with 20 forward and 20 reverse gears or an infinitely variable transmission with infinite forward and reverse gears.

The JD 7430 Premium row-crop tractor used the John Deere 6068HRW74 engine. It is a 6.8 L, 6,784 cm2, (414.0 cu·in) six-cylinder turbocharged intercooled diesel engine with 106.0 mm (4.17 in) of the cylinder bore and 127.0 mm (5 in) of the piston stroke. The compression ratio rating is 17.0:1. This engine produced 168.4 PS (123.8 kW; 166.0 HP) at 2,100 rpm of output power.

The 7430 Premium is equipped with hydrostatic power steering, differential hydraulic wet disc brakes, ComfortGard Premium cab (standard) and 302.8 liters (80 US gal.; 66.6 Imp. gal) fuel tank.

John Deere 7430 Premium Specifications

General Specifications
Model John Deere 7430 Premium
Length 4,790 mm (188.6 in)
Width
Height (cab) 3,040 mm (119.7 in)
Wheel base 2,680 mm (105.5 in)
Ground clearance Front axle: 570 mm (22.4 in)
Rear axle: 630 mm (24.8 in)
Weight (operating) 6,810 kg (15,013 lbs)
Fuel tank capacity 302.8 liters (80 US gal.; 66.6 Imp. gal)
Battery 12V
Cabin type ComfortGard Premium cab (standard)
Engine
Engine model John Deere 6068HRW74
Engine type Four-stroke, liquid-cooled, inline
Cylinders 6
Fuel type Diesel
Displacement 6.8 L, 6,784 cm2, (414.0 cu·in)
Bore and stroke 106.0 mm X 127.0 mm (4.17 in X 5 in)
Compression ratio 17.0:1
Horsepower 168.4 PS (123.8 kW; 166 HP) at 2,100 rpm
Torque 763.4 N·m (77.8 kg·m, 562.6 ft·lb) at 1,500 rpm
Starter Electric
Oil capacity: 19.7 L (20.8 US. qt, 17.3 Imp. qt.)
Coolant capacity: 28.0 L (29.6 US. qt, 24.6 Imp. qt.)
Transmission and chassis
Chassis 4×4 MFWD 4WD
Steering type Hydrostatic power
Brakes Differential hydraulic wet disc
Transmission model PowrQuad Plus
Transmission type Partial power shift
Gears 16 forward and 16 reverse
Speed Forward: 29.9 kmh (18.6 mph) Reverse: 31.4 kmh (19.5 mph)
Transmission oil capacity 56.0 L (14.8 US. gal, 12.3 Imp. gal.)
Transmission model AutoQuad Plus
Transmission type Partial power shift
Gears 20 forward and 20 reverse
Transmission oil capacity 56.0 L (14.8 US. gal, 12.3 Imp. gal.)
Transmission model John Deere IVT
Transmission type Infinitely variable transmission
Gears Infinite forward and reverse
Speed Forward: 40.2 kmh (25 mph)
Transmission oil capacity 65.9 L (17.4 US. gal, 14.5 Imp. gal.)
Tires
Front tires Ag: 16.9R28
Rear tires Ag: 18.4R42
Three-Point Hitch
Category III
Control type
Lift capacity (at ends) 4808 kg (10602 lbs)
PTO (Power take-off shaft)
Front PTO type Independent (optional)
Front PTO speed 1000 rpm
Rear PTO type Independent
Rear PTO speed 540/1000 or 540E/1000/1000E (optional) rpm
Hydraulic system
Hydraulic type Constand flow load sensing or closed-center pressure and flow compensated (Premium)
Hydraulic capacity 51.9 L (13.7 US gal, 11.4 Imp. gal.)
With IVT: 60.2 L (15.9 US gal, 13.2 Imp. gal.)
Pressure 2900 psi (199.9 bar)
Valves 2 to 4
Pump flow 29.0 gpm (109.8 lpm)
