John Deere X740

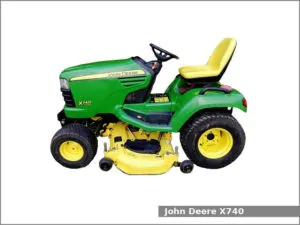

John Deere X740The John Deere X740 is a 2WD lawn and garden tractor from the X700 series. This tractor was manufactured by John Deere in Horicon, Wisconsin, USA from 2006 to 2012.

The John Deere X740 used with one of two engines: a 1.1 L (68.1 cu·in) three-cylinder diesel engine or a 0.9 L (55.2 cu·in) three-cylinder diesel engine and a shaft-driven hydrostatic transmission with infinite forward and reverse gears.

The JD X740 is equipped with hydrostatic power steering, wet disc brakes, open operator station, and 24.6 liters (6.5 US gal.; 5.4 Imp. gal) fuel tank.

The tractor could be equipped with the following engines:

  • Yanmar 3TNV76 (2006-2010). It is a 1.1 L, 1,116 cm2, (68.1 cu·in) three-cylinder natural aspirated diesel engine with 74.0 mm (2.91 in) of the cylinder bore and 82.0 mm (3.23 in) of the piston stroke. The compression ratio rating is 23.4:1. This engine produced 24.3 PS (17.9 kW; 24.0 HP) of output power.
  • Yanmar 3TNM72 (2011-2012). It is a 0.9 L, 904 cm2, (55.2 cu·in) three-cylinder natural aspirated diesel engine. The cylinder bore is 72.0 mm (2.83 in) and the piston stroke is 74.0 mm (2.91 in). The compression ratio rating is 23.4:1. This engine produced 24.3 PS (17.9 kW; 24.0 HP) of output power.

Following attachments are available for the John Deere X740 garden tractor:

  • Mid-mount John Deere 48X: 48 in (1,210 mm) mower deck with 3-blades and hydraulic lift
  • Mid-mount John Deere 54X: 54 in (1,370 mm) mower deck with 3-blades and hydraulic lift
  • Mid-mount John Deere 7-Iron: 60 in (1,520 mm) mower deck with 3-blades and hydraulic lift
  • Mid-mount John Deere 64X: 64 in (1,570 mm) mower deck with 3-blades and hydraulic lift
  • Front-mount John Deere 54 in (1,370 mm) blade
  • Front-mount John Deere 47 in (1,190 mm) snowblower
  • Front-mount John Deere 54 in (1,370 mm) snowblower

John Deere X740 Specifications

General Specifications
Model John Deere X740
Length 2,000 mm (78.7 in)
Width 1,180 mm (46.5 in)
Height 1,270 mm (50 in)
Wheel base 1,380 mm (54.3 in)
Weight 453 kg (999 lbs)
Fuel tank capacity 24.6 liters (6.5 US gal.; 5.4 Imp. gal)
Battery 12V, CCA 500A
Cabin type Open operator station
Engine
Engine model Yanmar 3TNV76
Engine type Four-stroke, liquid-cooled, inline
Cylinders 3
Fuel type Diesel
Displacement 1.1 L, 1,116 cm2, (68.1 cu·in)
Bore and stroke 74.0 mm X 82.0 mm (2.91 in X 3.23 in)
Compression ratio 23.4:1
Horsepower 24.3 PS (17.9 kW; 24.0 HP)
Starter Electric
Oil capacity: 2.6 L (2.7 US. qt, 2.3 Imp. qt.)
Coolant capacity: 2.8 L (3 US. qt, 2.5 Imp. qt.)
Engine
Engine model Yanmar 3TNM72
Engine type Four-stroke, liquid-cooled, inline
Cylinders 3
Fuel type Diesel
Displacement 0.9 L, 904 cm2, (55.2 cu·in)
Bore and stroke 72.0 mm X 74.0 mm (2.83 in X 2.91 in)
Compression ratio 23.4:1
Horsepower 24.3 PS (17.9 kW; 24.0 HP)
Starter Electric
Oil capacity: 3.2 L (3.4 US. qt, 2.8 Imp. qt.)
Coolant capacity: 2.8 L (3 US. qt, 2.5 Imp. qt.)
Transmission and chassis
Chassis 4×2 2WD
Steering type Hydrostatic power
Brakes Wet disc
Transmission model Tuff Torq K92
Transmission type Shaft-driven hydrostatic
Gears Infinite forward and reverse
Speed Forward: 13.7 kmh (8.5 mph) Reverse: 8.0 (5 mph)
Transmission oil capacity 6.6 L (1.7 US. gal, 1.5 Imp. gal.)
Tires
Front tires Lawn/turf: 18×8.5-8
Rear tires Lawn/turf: 26×12-12
Three-Point Hitch
Caterogy 0 (optional) or I Limited (optional)
Control type
Lift capacity (at ends)
PTO (Power take-off shaft)
Front PTO type Optional
Front PTO speed 2,000 rpm
Middle PTO type Independent
Middle PTO speed 2,000 rpm
Rear PTO type Independent
Rear PTO speed 540 rpm
Hydraulic system
Hydraulic type
Pressure 924 psi (63.7 bar)
Valves 2
Total flow 4.5 gpm (17 lpm)
