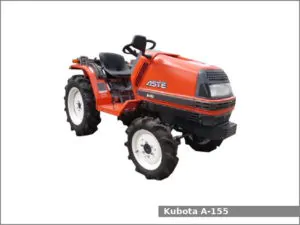

The Kubota Aste A-155 is a 4WD sub-compact utility tractor from the Aste series. This tractor was manufactured by the Kubota from 1992 to 1996. The Kubota A-155 is equipped with 0.9 L three-cylinder diesel engine and transmission with 6 forward and 2 reverse gears.
The Kubota A-155 utility tractor used the Kubota D905 engine. It is a 0.9 L, 898 cm2, (54.8 cu·in) three-cylinder natural aspirated diesel engine with 72.0 mm (2.83 in) of the cylinder bore and 73.6 mm (2.9 in) of the piston stroke. This engine produced 16 PS (11.8 kW; 15.8 HP) of maximum output power.
The Kubota A-155 is equipped with an open operator station with two-post ROPS and 17.0 liters (4.5 US gal.; 3.7 Imp. gal) fuel tank.
Kubota A-155 Specifications
|Length||2,530 mm (99.6 in)|
|Width||1,040 mm (40.9 in)|
|Height||1,800 mm (70.9 in)|
|Wheel base||1,350 mm (53.1 in)|
|Weight||664 kg (1,464 lbs)|
|Fuel tank capacity||17.0 liters (4.5 US gal.; 3.7 Imp. gal)|
|Cabin type||Open operator station with two-post ROPS|
|Engine model||Kubota D905|
|Engine type||Four-stroke, liquid-cooled, inline|
|Displacement||0.9 L, 898 cm2, (54.8 cu·in)|
|Bore and stroke||72.0 mm X 73.6 mm (2.83 in X 2.9 in)|
|Horsepower||16 PS (11.8 kW; 15.8 HP)|
|Transmission and chassis|
|Chassis||4×4 MFWD 4WD|
|Gears||6 forward and 2 reverse|
|Speed||Forward: 12.0 kmh (7.5 mph) Reverse: 5.6 (3.5 mph)|
|Front tires||Ag: 5.00-12|
|Rear tires||Ag: 8-16|
|PTO (Power take-off shaft)|
|Rear PTO type||–|
|Rear PTO spped||540 rpm|
We try to use verified sources and official documentation, however, differences between sources or errors in entering information may occur. In addition, the characteristics may vary depending on the modification and market. We do not provide advice on technical issues related to the any operation or repair. We do not recommend using provided information for repairing or spare parts ordering, use only official service manuals and spare-parts catalogs.
