Kubota B6100HST

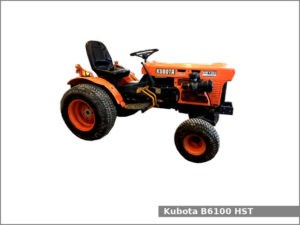

Kubota B6100HSTThe Kubota B6100HST is a 2WD (B6100HST-E) or 4WD (B6100HST-D) sub-compact utility tractor from the B-series. This tractor was manufactured by the Kubota in Japan from 1977 to 1997. The Kubota B6100HST is equipped with a 0.7 L three-cylinder diesel engine and hydrostatic transmission (HST) with 2 forward and 2 reverse gears..

The Kubota B6100HST utility tractor used the D650-A engine. It is a 0.7 L, 675 cm2, (41.2 cu·in) three-cylinder natural aspirated diesel engine with 64.0 mm (2.52 in) of the cylinder bore and 70.0 mm (2.76 in) of the piston stroke. This engine produced 14 PS (10.3 kW; 13.8 HP) at 2,800 rpm of gross horsepower.

The Kubota B6100HST tractor is equipped with ball screw type steering, internal-expanding type brakes (right and left independent with an interlock device), open operator station with two-post ROPS (Rollover protection structure) and 13.0 liters (3.4 US gal.; 2.9 Imp. gal) fuel tank.

Kubota B6100 Specifications

General Specifications
Model Kubota B6100HST
Length 2,100 mm (82.7 in)
Width 980 mm (38.6 in)
Height 1160 mm (45.7 in)
Wheel base B6100HST-E: 1,390 mm (54.7 in)
B6100HST-D: 1,400 mm (55.1 in)
Weight B6100HST-E: 440 kg (1,265 lbs)
B6100HST-D: 522 kg (1,150 lbs)
Fuel tank capacity 13.0 liters (3.4 US gal.; 2.9 Imp. gal)
Battery 12V 45Ah
Cabin type Open operator station with two-post ROPS
Engine
Engine model D650-A
Engine type Four-stroke, liquid-cooled, inline
Cylinders 3
Fuel type Diesel
Displacement 0.7 L, 675 cm2, (41.2 cu·in)
Bore and stroke 64.0 mm X 70.0 mm (2.52 in X 2.76 in)
Horsepower 14 PS (10.3 kW; 13.8 HP) at 2,800 rpm
Starter Electric
Oil capacity: 3.1 L (3.28 US. qt, 2.73 Imp. qt.)
Coolant capacity: 4.6 L (4.86 US. qt, 4.05 Imp. qt.)
Transmission and chassis
Chassis B6100HST-E: 4×2 2WD
B6100HST-D: 4×4 MFWD 4WD
Steering type Ball screw type
Brakes Internal-expanding type, right and left independent with interlock device
Differential B6100HST-E: Bevel gear type (only for rear wheels)
B6100HST-D: Bevel gear type (both for front and rear wheels)
Transmission model
Transmission type Hydrostatic transmission (HST)
Gears 2 forward and 2 reverse
Speed Forward: 14.5 kmh (9 mph) Reverse: 10.0 (6.2 mph)
Transmission oil capacity 13.5 L (14.27 US. qt, 11.88 Imp. qt.)
Tires
Front tires B6100HST-E: Ag: 4.00-9; Lawn/turf: 20×8.00-10
B6100HST-D: Ag: 5-12, 6-12; Lawn/turf: 20.5×8.00-10
Rear tires B6100HST-E: Ag: 7-16, 8-16; Lawn/turf: 29-12.00-15
B6100HST-D: Ag: 7-16, 8-16; Lawn/turf: 29×12.0-15
Three-Point Hitch
Caterogy I
Control type
Lift capacity 180 kg (397 lbs)
PTO (Power take-off shaft)
Mid PTO type
Mid PTO spped 2,450 rpm
Rear PTO type
Rear PTO spped 540/850 rpm
ATTENTION! Dear visitors, this site is not a trading platform, an official dealer or a spare parts supplier, so we do not have any price lists, spare parts catalogs, service or owner manuals. We are an information portal and provide the technical specifications.

We try to use verified sources and official documentation, however, differences between sources or errors in entering information may occur. In addition, the characteristics may vary depending on the modification and market. We do not provide advice on technical issues related to the any operation or repair. We do not recommend using provided information for repairing or spare parts ordering, use only official service manuals and spare-parts catalogs.
