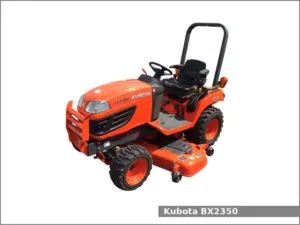

Kubota BX2350

Kubota BX2350The Kubota BX2350 is a 4WD compact utility tractor from the BX series. This tractor was manufactured by Kubota from 2006 to 2008. The Kubota BX2350 is equipped with a 0.9 L three-cylinder diesel engine and hydrostatic transmission with infinite (2-range) forward and reverse gears.

The Kubota BX2350 compact utility tractor used the Kubota D902 engine. It is a 0.9 L, 898 cm2, (54.8 cu·in) three-cylinder natural aspirated diesel engine with 71.0 mm (2.8 in) of the cylinder bore and 74.0 mm (2.91 in) of the piston stroke. This engine produced 23.4 PS (17.2 kW; 23.0 HP) at 3,200 rpm of maximum output power.

The Kubota BX2350 is equipped with hydrostatic power steering, wet disc type brakes, open operator station with ROPS and 25.0 liters (6.6 US gal.; 5.5 Imp. gal) fuel tank. This utility tractor was available with the Kubota LA243 loader.

Kubota BX2350 Specifications

General Specifications
Model Kubota BX2350
Length 2,420 mm (95.3 in)
Width 1,130 mm (44.5 in)
Height 1,780 mm (70.1 in)
Wheel base 1,390 mm (54.7 in)
Weight 600 kg (1,325 lbs)
Fuel tank capacity 25.0 liters (6.6 US gal.; 5.5 Imp. gal)
Battery 12V, CCA: 535A
Cabin type Open operator station with ROPS
Engine
Engine model Kubota D902
Engine type Four-stroke, liquid-cooled, inline
Cylinders 3
Fuel type Diesel
Displacement 0.9 L, 898 cm2, (54.8 cu·in)
Bore and stroke 71.0 mm X 74.0 mm (2.8 in X 2.91 in)
Horsepower 23.4 PS (17.2 kW; 23.0 HP) at 3,200 rpm
Starter Electric
Oil capacity: 3.1 L (3.3 US. qt, 2.7 Imp. qt.)
Transmission and chassis
Chassis 4×4 MFWD 4WD
Steering type Hydrostatic power
Brakes Wet disc type
Transmission model HST
Transmission type Hydrostatic
Gears Infinite (2-range) forward and reverse
Speed Forward: 13.0 kmh (8.1 mph) Reverse: 10.0 (6.2 mph)
Transmission oil capacity 11.7 L (3.1 US. gal, 2.6 Imp. gal.)
Tires
Front tires Ag/Lawn/turf: 18×8.5-10
Rear tires Ag/Lawn/turf: 26×12-12
Three-Point Hitch
Caterogy I
Control type
Lift capacity (at ends) 450 kg (992 lbs)
PTO (Power take-off shaft)
Middle PTO type Independent
Middle PTO spped 2,500 rpm
Rear PTO type Independent
Rear PTO spped 540 rpm
Hydraulic system
Hydraulic type Open center
Hydraulic capacity 11.7 L (12.36 US. qt, 10.29 Imp. qt.)
Pump flow 6.3 gpm (23.8 lpm)
