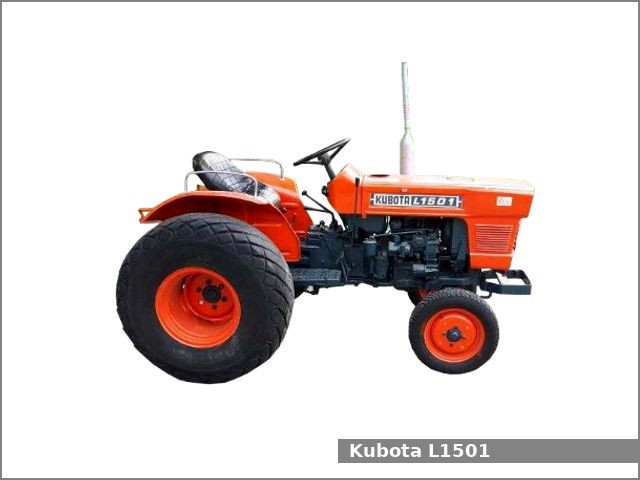

The Kubota L1501 is a 2WD or 4WD (L1501DT) sub-compact utility tractor from the L series. This tractor was manufactured by Kubota from 1975 to 1978. The Kubota L1501 is equipped with a 0.7 L (45.3 cu·in) two-cylinder diesel engine and a transmission with 16 forward and 4 reverse gears.
The Kubota L1501 sub-compact utility tractor used the Kubota Z751 engine. It is a 0.7 L, 743 cm2, (45.3 cu·in) two-cylinder natural aspirated diesel engine with 76.0 mm (2.99 in) of the cylinder bore and 82.0 mm (3.23 in) of the piston stroke. This engine produced 15.2 PS (11.2 kW; 15.0 HP) of output power.
Kubota L1501 Specifications
|Fuel tank capacity||–|
|Cabin type||Open operator station|
|Engine model||Kubota Z751|
|Engine type||Four-stroke, liquid-cooled, inline|
|Displacement||0.7 L, 743 cm2, (45.3 cu·in)|
|Bore and stroke||76.0 mm X 82.0 mm (2.99 in X 3.23 in)|
|Horsepower||15.2 PS (11.2 kW; 15.0 HP)|
|Transmission and chassis|
|Chassis||4×2 2WD or 4×4 MFWD 4WD|
|Gears||16 forward and 4 reverse|
|Front tires||Ag: 4-12|
|Rear tires||Ag: 8.3-22|
|PTO (Power take-off shaft)|
|Rear PTO type||–|
|Rear PTO speed||540 rpm|
We try to use verified sources and official documentation, however, differences between sources or errors in entering information may occur. In addition, the characteristics may vary depending on the modification and market. We do not provide advice on technical issues related to the any operation or repair. We do not recommend using provided information for repairing or spare parts ordering, use only official service manuals and spare-parts catalogs.
