Kubota ZD221

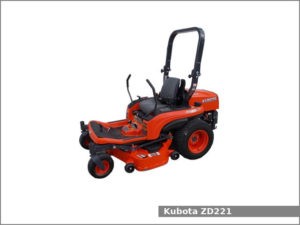

Kubota ZD221The Kubota ZD221 is a 2WD zero-turn mower from the Z200 series. This tractor was manufactured by Kubota from 2008 to 2018. The Kubota ZD221 is equipped with a 0.8 L (47.5 cu·in) three-cylinder diesel engine and a hydrostatic transmission with infinite forward and reverse gears.

The Kubota ZD221 zero-turn mower used the Kubota D782 engine. It is a 0.8 L, 778 cm2, (47.5 cu·in) three-cylinder natural aspirated diesel engine with 67.0 mm (2.64 in) of the cylinder bore and 74.0 mm (2.91 in) of the piston stroke. This engine produced 21.4 PS (15.7 kW; 21.0 HP) at 3,200 rpm of maximum output power.

The Kubota ZD221 is equipped with differential power steering, wet discs type brakes, open operator station with two-post ROPS and 23.0 liters (6.0 US gal.; 5.1 Imp. gal) fuel tank.

Following attachments are available for the Kubota ZD221 zero-turn mower:

  • Mid-mount Kubota RCK48P-222Z 48 in (1,210 mm) mower deck with 2-blades
  • Mid-mount Kubota RCK54P-227Z 54 in (1,370 mm) mower deck with 2-blades

Kubota ZD221 Specifications

General Specifications
Model Kubota ZD221
Length 2,130 mm (83.9 in)
Width 1,210 mm (47.6 in)
Height 1,770 mm (69.7 in)
Wheel base 1,295 mm (51 in)
Ground clearance 130 mm (5.1 in)
Weight 550 kg (1,213 lbs)
Fuel tank capacity 23.0 liters (6.1 US gal.; 5.1 Imp. gal)
Battery 12V, CCA: 450A
Cabin type Open operator station with two-post ROPS
Engine
Engine model Kubota D782
Engine type Four-stroke, liquid-cooled, inline
Cylinders 3
Fuel type Diesel
Displacement 0.8 L, 778 cm2, (47.5 cu·in)
Bore and stroke 67.0 mm X 74.0 mm (2.64 in X 2.91 in)
Horsepower 21.4 PS (15.7 kW; 21.0 HP) at 3,200 rpm
Starter Electric
Oil capacity: 3.5 L (3.7 US. qt, 3.1 Imp. qt.)
Coolant capacity: 2.1 L (2.2 US. qt, 1.8 Imp. qt.)
Transmission and chassis
Chassis 4×2 2WD
Steering type Differential power
Brakes Wet discs type
Transmission model
Transmission type Hydrostatic
Gears Infinite forward and reverse
Speed Forward: 14.5 kmh (9 mph) Reverse: 8.0 (5 mph)
Transmission oil capacity 7.5 L (2 US. gal, 1.6 Imp. gal.)
Tires
Front tires Lawn/turf: 13×5.0-6
Rear tires Lawn/turf: 23×10.5-12
PTO (Power take-off shaft)
Middle PTO type Independent with hydraulic wet disc clutch
Middle PTO speed
