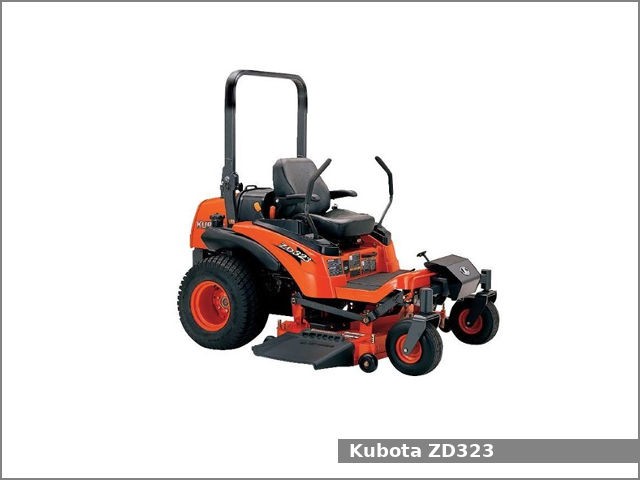

Kubota ZD323

Kubota ZD323The Kubota ZD323 is a 2WD zero-turn mower from the Z300 series. This tractor was manufactured by Kubota from 2008 to 2018. The Kubota ZD323 is equipped with a 0.9 L (54.8 cu·in) three-cylinder diesel engine and a hydrostatic transmission with infinite forward and reverse gears.

The Kubota ZD323 zero-turn mower used the Kubota D902 engine. It is a 0.9 L, 898 cm2, (54.8 cu·in) three-cylinder natural aspirated diesel engine with 72.0 mm (2.83 in) of the cylinder bore and 74.0 mm (2.91 in) of the piston stroke. This engine produced 23.4 PS (17.2 kW; 23.0 HP) at 3,200 rpm of output power.

The Kubota ZD323 is equipped with differential power steering, wet discs brakes, two-post foldable ROPS, 49.0 liters (12.9 US gal.; 10.8 Imp. gal) fuel tank and mid-mount the Kubota RCK60P-331Z – 60 inches (1,520 mm) mower deck with 3-blades.

Kubota ZD323 Specifications

General Specifications
Model Kubota ZD323
Length 2,210 mm (87 in)
Width 1,460 mm (57.5 in)
Height 1,910 mm (75.2 in)
Wheel base 1,400 mm (55.1 in)
Weight 750 kg (1,653 lbs)
Fuel tank capacity 49.0 liters (12.9 US gal.; 10.8 Imp. gal)
Battery 12V, CCA: 475A
Cabin type Two-post foldable ROPS
Engine
Engine model Kubota D902
Engine type Four-stroke, liquid-cooled, inline
Cylinders 3
Fuel type Diesel
Displacement 0.9 L, 898 cm2, (54.8 cu·in)
Bore and stroke 72.0 mm X 74.0 mm (2.83 in X 2.91 in)
Horsepower 23.4 PS (17.2 kW; 23.0 HP) at 3,200 rpm
Starter Electric
Transmission and chassis
Chassis 4×2 2WD
Steering type Differential power
Brakes Wet discs
Transmission model –
Transmission type Hydrostatic
Gears Infinite forward and reverse
Speed Forward: 15.0 kmh (9.3 mph) Reverse: 8.4 (5.2 mph)
Tires
Front tires Lawn/turf: 15×6.0-6
Rear tires Lawn/turf: 26×12.0-12
PTO (Power take-off shaft)
Middle PTO type Independent with hydraulic wet disc clutch
Middle PTO speed –
