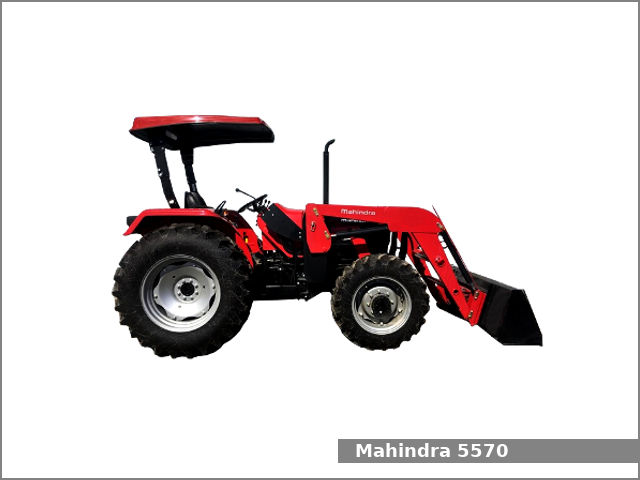

Mahindra 5570

Mahindra 5570The Mahindra 5570 is a 2WD or 4WD utility tractor from the 5500 series. This tractor has been manufactured by Mahindra since 2015. The Mahindra 5570 is equipped with a 2.7 L (161.7 cu·in) three-cylinder diesel engine and a sync shuttle transmission with cerametallic dry disc clutch and 8 forward and 8 reverse gears.

The Mahindra 5570 utility tractor used the Mahindra engine. It is a 2.7 L, 2,650 cm2, (161.7 cu·in) three-cylinder turbocharged intercooled diesel engine with 96.0 mm (3.78 in) of the cylinder bore and 122.0 mm (4.8 in) of the piston stroke. The compression ratio rating is 17.2:1. This engine produced 71 PS (52.2 kW; 70.0 HP) at 2,100 rpm of maximum output power.

The Mahindra 5570 is equipped with power steering, wet disc brakes, two-post foldable ROPS, and 45.4 liters (12 US gal.; 10 Imp. gal) fuel tank.

Following attachments are available for the Mahindra 5570 utility tractor:

  • Mahindra 5565-2L loader
  • Mahindra 5565-4L loader
  • Mahindra 75B backhoe
  • Mahindra 85B backhoe

Mahindra 5570 Specifications

General Specifications
Model Mahindra 5570
Length 2WD: 3,510 mm (138.2 in)
4WD: 3,680 mm (145.0 in)
Width 2WD: 1,960 mm (77.2 in)
4WD: 2,050 mm (81.0 in)
Height 2WD: 2,620 mm (103.1 in)
4WD: 2,530 mm (99.7 in)
Wheel base
Weight 2WD: 2,520 kg (5,560 lbs)
4WD: 2,860 kg (6,300 lbs)
Fuel tank capacity 45.4 liters (12 US gal.; 10 Imp. gal)
Battery 12V, 96Ah
Cabin type Two-post foldable ROPS
Engine model Mahindra
Engine type Four-stroke, liquid-cooled, inline
Cylinders 3
Fuel type Diesel
Displacement 2.7 L, 2,650 cm2, (161.7 cu·in)
Bore and stroke 96.0 mm X 122.0 mm (3.78 in X 4.8 in)
Compression ratio 17.2:1
Horsepower 71 PS (52.2 kW; 70.0 HP) at 2,100 rpm
Starter Electric
Transmission and chassis
Chassis 4×2 2WD or 4×4 MFWD 4WD
Steering type Power
Brakes Wet disc
Transmission model
Transmission type Sync shuttle with cerametallic dry disc clutch
Gears 8 forward and 8 reverse
Front tires Ag: 9.5Lx15 (2WD), 11.2×24 (4WD)
Rear tires Ag: 16.9×28 (2WD), 16.9×30 (4WD)
Three-Point Hitch
Caterogy II/I
Control type Position and draft control
Lift capacity (at ends) 1,799 kg (3,967 lbs)
PTO (Power take-off shaft)
Rear PTO type Independent
Rear PTO speed 540 rpm
Hydraulic system
Hydraulic type Open center
Valves 2
Pump flow 11.2 gpm (42.4 lpm)
Steering flow 4.6 gpm (17.4 lpm)
Total flow 15.8 gpm (59.8 lpm)
