Massey Ferguson GC1705 utility tractor: review and specs

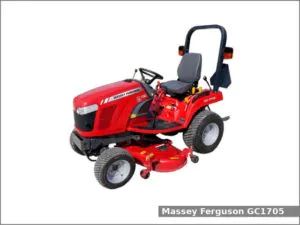

The Massey Ferguson GC1705 is a 4WD sub-compact utility tractor. This tractor has been manufactured by Iseki for Massey Ferguson since 2013. The Massey Ferguson GC1705 is equipped with a 1.1 L (68.5 cu·in) three-cylinder diesel engine and a hydrostatic transmission with infinite (2-range) forward and reverse gears.

The Massey Ferguson GC1705 sub-compact utility tractor used the Iseki engine. It is a 1.1 L, 1,123 cm², (68.5 cu·in) three-cylinder natural aspirated diesel engine. This engine produced 22.8 PS (16.8 KW; 22.5 HP) at 2,600 rpm of maximum horsepower or 18.9 PS (13.9 KW; 18.7 HP) of PTO output power.

The Massey Ferguson GC1705 is equipped with hydrostatic power steering, wet disc type brakes, two-post ROPS, and 25.0 liters (6.6 US gal.; 5.5 Imp. gal) fuel tank.

Following attachments are available for the Massey Ferguson GC1705 sub-compact utility tractor:

Mid-mount Massey Ferguson 2315 54 in (1,370 mm) mower deck
Mid-mount Massey Ferguson 2320 54 in (1,370 mm) mower deck
Mid-mount Massey Ferguson 2326 60 in (1,520 mm) mower deck
Massey Ferguson DL100 loader
Massey Ferguson DL95 loader

Massey Ferguson GC1705 Specifications

General Specifications
Model	Massey Ferguson GC1705
Length	2,470 mm (97.2 in)
Width	1,200 mm (47.2 in)
Height	1,840 mm (72.4 in)
Wheel base	1,450 mm (57.1 in)
Ground clearance	170 mm (6.7 in)
Weight	650 kg (1,433 lbs)
Fuel tank capacity	25.0 liters (6.6 US gal.; 5.5 Imp. gal)
Battery	12V
Cabin type	Two-post ROPS
Engine
Engine model	Iseki
Engine type	Four-stroke, liquid-cooled, inline
Cylinders	3
Fuel type	Diesel
Displacement	1.1 L, 1,123 cm², (68.5 cu·in)
Bore and stroke	–
Horsepower	22.8 PS (16.8 KW; 22.5 HP) at 2,600 rpm
Starter	Electric

Transmission and chassis
Chassis	4×4 MFWD 4WD
Steering type	Hydrostatic power
Brakes	Wet disc type
Transmission model	–
Transmission type	Hydrostatic
Gears	Infinite (2-range) forward and reverse
Speed	Forward: 14.7 kmh (9.1 mph)
Tires
Front tires	Ag, Lawn/turf, Industrial: 18×8.50-10
Rear tires	Ag, Lawn/turf, Industrial: 26×12.00-12

Three-Point Hitch
Caterogy	I
Control type	–
Lift capacity (at ends)	540 kg (1,190 lbs)
PTO (Power take-off shaft)
Middle PTO type	Independent
Middle PTO speed	2,000 rpm
Rear PTO type	Independent
Rear PTO speed	540 rpm
Hydraulic system
Hydraulic type	Open center
SVC flow	4.3 gpm (16.3 lpm)
Steering flow	2.0 gpm (7.6 lpm)
Total flow	6.3 gpm (23.8 lpm)
