New Holland TN75

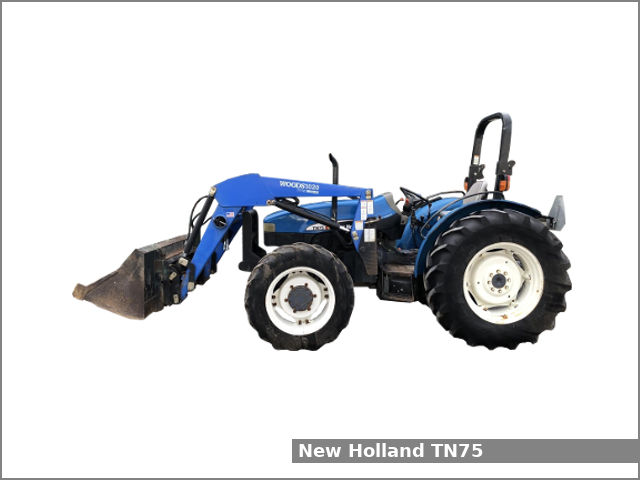

New Holland TN75The New Holland TN75 is a 2WD or 4WD utility tractor from the TN series. This tractor was manufactured by New Holland in Jesi, Italy from 1999 to 2003. The New Holland TN75 is equipped with a 2.9 L (179.0 cu·in) three-cylinder diesel engine and one of three transmissions: a mechanical shuttle transmission with dry disc clutch and 8 forward and 8 reverse gears, a power shuttle transmission with wet disc clutch and 8 forward and 8 reverse gears or a shuttle transmission with 16 forward and 16 reverse gears.

The New Holland TN75 utility tractor used the Iveco 8035 engine. It is a 2.9 L, 2,933 cm2, (179.0 cu·in) three-cylinder natural aspirated diesel engine with 104.0 mm (4.09 in) of the cylinder bore and 115.0 mm (4.53 in) of the piston stroke. The compression ratio rating is 18.0:1. This engine produced 76 PS (55.9 kW; 75.0 HP) at 2,300 rpm of output power and 295.6 N·m (30.1 kg·m, 217.9 ft·lb) at 1,400 rpm of torque.

The New Holland TN75 is equipped with power steering, differential hydraulic wet disc brakes, Two-post folding ROPS or Cab (optional), and 65.5 liters (17.3 US gal.; 14.4 Imp. gal) fuel tank.

The NH TN75 variants:

  • TN75: ROPS
  • TN75D: Cab
  • TN75S: Super Steer
  • TN75F: Orchard

New Holland TN75 Specifications

General Specifications
Model New Holland TN75
Length 3,930 mm (154.7 in)
Width 1,700 mm (66.9 in)
Height ROPS: 2,410 mm (94.9 in)
Cab: 2,300 mm (90.6 in)
Weight 2WD with ROPS: 2,130 kg (4,700 lbs)
4WD with ROPS: 2,345 kg (5,175 lbs)
2WD with Cab: 2,295 kg (5,065 lbs)
4WD with Cab: 2,570 kg (5,665 lbs)
Fuel tank capacity 65.5 liters (17.3 US gal.; 14.4 Imp. gal)
Battery 12V, CCA: 730A
Cabin type Two-post folding ROPS or Cab (optional)
Engine
Engine model Iveco 8035
Engine type Four-stroke, liquid-cooled, inline
Cylinders 3
Fuel type Diesel
Displacement 2.9 L, 2,933 cm2, (179.0 cu·in)
Bore and stroke 104.0 mm X 115.0 mm (4.09 in X 4.53 in)
Compression ratio 18.0:1
Horsepower 76 PS (55.9 kW; 75.0 HP) at 2,300 rpm
Torque 295.6 N·m (30.1 kg·m, 217.9 ft·lb) at 1,400 rpm
Starter Electric
Transmission and chassis
Chassis 4×2 2WD or 4×4 MFWD 4WD
Steering type Power
Brakes Differential hydraulic wet disc
Transmission model
Transmission type Mechanical shuttle with dry disc clutch
Gears 8 forward and 8 reverse
Transmission model Synchro Command
Transmission type Power shuttle with wet disc clutch
Gears 8 forward and 8 reverse
Transmission model Synchro Command Plus
Transmission type Shuttle
Gears 16 forward and 16 reverse
Tires
Front tires Ag: 7.50-16 (2WD), 8.3-24 (4WD)
Rear tires Ag: 14.9-28
Three-Point Hitch
Caterogy II
Control type
Lift capacity (at 610 mm /24 in) 1,795 kg (3,960 lbs)
PTO (Power take-off shaft)
Rear PTO type Independent with dry disc clutch
Rear PTO speed 540 rpm
Hydraulic system
Hydraulic type Open center
Hydraulic capacity 42.0 L (44.38 US. qt, 36.95 Imp. qt.)
Pressure 2755 psi (189.9 bar)
Valves 1 to 3
Pump flow 16.9 gpm (64 lpm)
Steering flow 7.2 gpm (27.3 lpm)
9.2 gpm (34.8 lpm)
ATTENTION! Dear visitors, this site is not a trading platform, an official dealer or a spare parts supplier, so we do not have any price lists, spare parts catalogs, service or owner manuals. We are an information portal and provide the technical specifications.

We try to use verified sources and official documentation, however, differences between sources or errors in entering information may occur. In addition, the characteristics may vary depending on the modification and market. We do not provide advice on technical issues related to the any operation or repair. We do not recommend using provided information for repairing or spare parts ordering, use only official service manuals and spare-parts catalogs.
