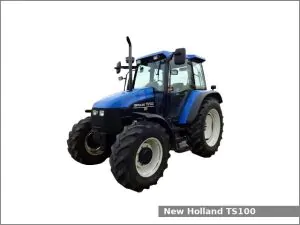

New Holland TS100

New Holland TS100The New Holland TS100 is a 2WD or 4WD row-crop tractor from the TS series. This tractor was manufactured by New Holland in Basildon, England from 1999 to 2003. The New Holland TS100 is equipped with a 5.0 L (304.0 cu·in) four-cylinder diesel engine and one of three transmissions: the Synchro Command transmission with 12 forward and 12 reverse gears, the Dual Command transmission with 24 forward and 24 reverse gears or the ElectroShift transmission with 16 forward and 16 reverse gears (24 forward and 24 reverse with creeper).

The New Holland TS100 row-crop tractor used the New Holland Genesis engine. It is a 5.0 L, 4,982 cm2, (304.0 cu·in) four-cylinder turbocharged diesel engine with 112.0 mm (4.41 in) of the cylinder bore and 127.0 mm (5.0 in) of the piston stroke. The compression ratio rating is 17.5:1. This engine produced 101.5 PS (74.6 kW; 100.0 HP) at 2,170 rpm of output power.

The New Holland TS100 is equipped with hydrostatic power steering, hydraulic wet disc brakes, ROPS or Cab (optional), and 159.0 liters (42 US gal.; 35 Imp. gal) fuel tank.

New Holland TS100 Specifications

General Specifications
Model New Holland TS100
Length 2WD: 3,810 mm (150 in)
4WD: 4,030 mm (158.7 in)
Width 2,010 mm (79.1 in)
Height ROPS: 2,880 mm (113.4 in)
Cab: 2,710 mm (106.7 in)
Wheelbase 2WD: 2,330 mm (91.7 in)
4WD: 2,360 mm (92.9 in)
Ground clearance 390 mm (15.4 in)
Weight 2WD ROPS: 3,300 kg (7,275 lbs)
4WD ROPS: 3,750 kg (8,265 lbs)
2WD Cab: 3,930 kg (8,665 lbs)
4WD Cab: 4,470 kg (9,855 lbs)
Fuel tank capacity 159.0 liters (42 US gal.; 35 Imp. gal)
Battery One or two 12V, CCA 800A
Cabin type ROPS or Cab (optional)
Engine model New Holland Genesis
Engine type Four-stroke, liquid-cooled, inline
Cylinders 4
Fuel type Diesel
Displacement 5.0 L, 4,982 cm2, (304.0 cu·in)
Bore and stroke 112.0 mm X 127.0 mm (4.41 in X 5 in)
Compression ratio 17.5:1
Horsepower 101.5 PS (74.6 kW; 100 HP) at 2,170 rpm
Starter Electric
Oil type SAE 5W-30, 10W-30
Oil capacity: 11.4 L (12 US. qt, 10 Imp. qt.)
Coolant capacity: ROPS: 14.0 L (14.8 US. qt, 12.3 Imp. qt.)
Cab: 15.9 L (16.8 US. qt, 14.0 Imp. qt.)
Transmission and chassis
Chassis 4×2 2WD or 4×4 MFWD 4WD
Steering type Hydrostatic power
Brakes Hydraulic wet disc
Transmission model Synchro Command
Transmission type
Gears 12 forward and 12 reverse
Speed Forward: 37.7 kmh (23.4 mph)
Transmission oil capacity 56.8 L (15 US. gal, 12.5 Imp. gal.)
Transmission model Dual Command
Transmission type
Gears 24 forward and 24 reverse
Speed Forward: 37.7 kmh (23.4 mph)
Transmission oil capacity 56.8 L (15 US. gal, 12.5 Imp. gal.)
Transmission model ElectroShift
Transmission type
Gears 16 forward and 16 reverse
Transmission oil capacity 60.6 L (16 US. gal, 13.3 Imp. gal.)
Front tires Ag: 7.50-16
Rear tires Ag: 16.9-30
Three-Point Hitch
Category II/IIIN
Control type
Lift capacity (at ends) 1,905 kg (4,200 lbs)
Assist ram: 2,815 kg (6,210 lbs)
Two assist ram: 3,740 kg (8,240 lbs)
PTO (Power take-off shaft)
Rear PTO type Independent
Rear PTO speed 540/1000 rpm
Hydraulic system
Hydraulic type Open or closed load sensing (optional)
Pressure 2500 psi (172.4 bar)
2700 psi (186.2 bar)
Valves 2 to 4
Pump flow 9.7 gpm (36.7 lpm)
18.2 gpm (68.9 lpm)
21.0 gpm (79.5 lpm)
Steering flow 9.5 gpm (36 lpm)
Total flow 37.0 gpm (140.1 lpm)
