Simplicity Landlord 9HP

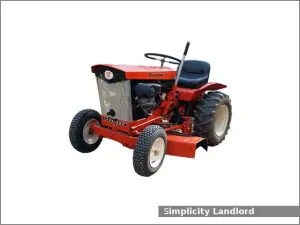

Simplicity Landlord 9HPThe Simplicity Landlord 9HP is a 2WD garden tractor from the Landlord series. This tractor was manufactured by Simplicity (a part of Allis Chalmers) in Port Washington, Wisconsin, USA from 1964 to 1965. The Simplicity Landlord is equipped with a 0.4 L (23.9 cu·in) single-cylinder gasoline engine and one of two transmissions: a shaft-driven gear type transmission with 3 forward and 1 reverse gears or a gear type transmission with 6 forward and 2 reverse gears.

The Simplicity Landlord 9HP garden tractor used the Briggs & Stratton 243431 engine. It is a 0.4 L, 392 cm2, (23.9 cu·in) single-cylinder natural aspirated gasoline engine with 78.0 mm (3.07 in) of the cylinder bore and 83.0 mm (3.27 in) of the piston stroke. This engine produced 9.1 PS (6.7 kW; 9.0 HP) at 3,600 rpm of output power.
The Simplicity Landlord 9HP is equipped with manual steering, mechanical band brakes, and an open operator station.

Following attachments are available for the Simplicity Landlord 9HP garden tractor:

  • Mid-mount Simplicity 32 in (810 mm) mower deck with 3-blade, manual lift and left-discharge
  • Mid-mount Simplicity 124 42 in (1,060 mm) mower deck with 3-blade, manual lift and left-discharge
  • Front-mount Simplicity 46 in (1,160 mm) blade with manual lift
  • Front-mount Simplicity 36 in (910 mm) snowblower

Simplicity Landlord 9HP variants:

  • 990308 manual start
  • 990314 electric start
  • 990350 mechanical lift
  • 990351 hydraulic lift

Simplicity Landlord 9HP Specifications

General Specifications
Model Simplicity Landlord 9HP
Length 1,600 mm (63 in)
Width 860 mm (33.9 in)
Height (steering wheel) 930 mm (36.6 in)
Wheel base 1,130 mm (44.5 in)
Weight (shipping) 308 kg (679 lbs)
Fuel tank capacity
Battery 12V
Cabin type Open operator station
Engine
Engine model Briggs & Stratton 243431
Engine type Four-stroke, air-cooled
Cylinders 1
Fuel type Gasoline
Displacement 0.4 L, 392 cm2, (23.9 cu·in)
Bore and stroke 78.0 mm X 83.0 mm (3.07 in X 3.27 in)
Horsepower 9.1 PS (6.7 kW; 9.0 HP) at 3,600 rpm
Starter Manual recoil or electric (optional)
Transmission and chassis
Chassis 4×2 2WD
Steering type Manual
Brakes Mechanical band
Transmission model
Transmission type Shaft-driven gear type
Gears 3 forward and 1 reverse
Speed Forward: 9.7 kmh (6 mph) Reverse: kmh (0 mph)
Transmission oil capacity 1.4 L (0.4 US. gal, 0.3 Imp. gal.)
Transmission model
Transmission type Gear type
Gears 6 forward and 2 reverse
Tires
Front tires Ag: 4.80×8
Rear tires Ag: 8-12
PTO (Power take-off shaft)
Middle PTO type Independent with mechanical idler pulley
Middle PTO speed
