Simplicity Citation 21/48

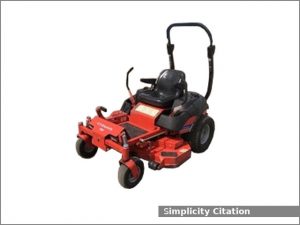

Simplicity Citation 21/48The Simplicity Citation 21/48 is a 2WD zero-turn mower from the Citation series. This tractor was manufactured by Simplicity (a part of Briggs & Stratton) from 2006 to 2009. The Simplicity Citation 21/48 is equipped with a 0.6 L (38.3 cu·in) two-cylinder gasoline engine and a hydrostatic transmission with infinite forward and reverse gears.

The Simplicity Citation 21/48 zero-turn mower used the Briggs & Stratton Vanguard engine. It is a 0.6 L, 627 cm2, (38.3 cu·in) V-twin natural aspirated gasoline engine with 75.0 mm (2.95 in) of the cylinder bore and 70.0 mm (2.76 in) of the piston stroke. This engine produced 21.4 PS (15.7 kW; 21.0 HP) at 3,600 rpm of output power.

The Simplicity Citation 21/48 is equipped with manual steering, two-post folding ROPS, 24.6 liters (6.5 US gal.; 5.4 Imp. gal) fuel tank and mid-mount 48 inches (1,210 mm) mower deck with 3-blade and manual lift.

Simplicity Citation 21/48 Specifications

General Specifications
ModelSimplicity Citation 21/48
Length2,010 mm (79.1 in)
Width–
Height (ROPS)1,770 mm (69.7 in)
Wheel base1,210 mm (47.6 in)
Weight439 kg (968 lbs)
Fuel tank capacity24.6 liters (6.5 US gal.; 5.4 Imp. gal)
Battery12V, CCA 340A
Cabin typeTwo-post folding ROPS
Engine
Engine modelBriggs & Stratton Vanguard
Engine typeFour-stroke, air-cooled, V-twin
Cylinders2
Fuel typeGasoline
Displacement0.6 L, 627 cm2, (38.3 cu·in)
Bore and stroke75.0 mm X 70.0 mm (2.95 in X 2.76 in)
Horsepower21.4 PS (15.7 kW; 21.0 HP) at 3,600 rpm
StarterElectric
Transmission and chassis
Chassis4×2 2WD
Steering typeManual
Brakes–
Transmission modelHydro-Gear
Transmission typeHydrostatic
GearsInfinite forward and reverse
Speed Forward: 14.5 kmh (9 mph) Reverse: 8.0 kmh (5 mph)
Tires
Front tires Lawn/turf: 13×5.0-6
Rear tires Lawn/turf: 22×11.00-8
PTO (Power take-off shaft)
Middle PTO typeIndependent with electric clutch
Middle PTO speed–
