Toro 8-25 56123

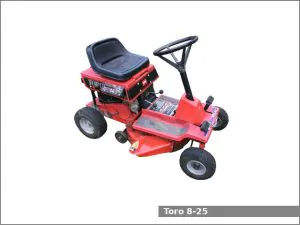

Toro 8-25The Toro 8-25 (56123) is a 2WD riding mower from the series. This tractor was manufactured by Toro from 1989 to 1990. The Toro 8-25 is equipped with a 318 cc (19.4 cu·in) single-cylinder gasoline engine and a belt-driven gear transmission with 5 forward and 1 reverse gears.

The Toro 8-25 riding mower used the Tecumseh TVXL195 engine. It is a 0.3 L, 318 cm2, (19.4 cu·in) single-cylinder natural aspirated gasoline engine with 79.4 mm (3.13 in) of the cylinder bore and 64.3 mm (2.53 in) of the piston stroke. This engine produced 8.2 PS (6.0 kW; 8.0 HP) of output power.

The Toro 8-25 is equipped with manual steering, open operator station, 3.8 liters (1.0 US gal.; 0.8 Imp. gal) fuel tank and mid-mount 25 in (600 mm) mower deck.

Toro 8-25 Specifications

General Specifications
ModelToro 8-25 56123
Length1,320 mm (52 in)
Height (steering wheel)960 mm (37.8 in)
Wheel base1,010 mm (39.8 in)
Weight (shipping)138 kg (304 lbs)
Fuel tank capacity3.8 liters (1.0 US gal.; 0.8 Imp. gal)
Cabin typeOpen operator station
Engine modelTecumseh TVXL195
Engine typeFour-stroke, air-cooled
Fuel typeGasoline
Displacement0.3 L, 318 cm2, (19.4 cu·in)
Bore and stroke79.4 mm X 64.3 mm (3.13 in X 2.53 in)
Horsepower8.2 PS (6.0 kW; 8.0 HP)
Transmission and chassis
Chassis4×2 2WD
Steering typeManual
Transmission modelPeerless
Transmission typeBelt-driven gear
Gears5 forward and 1 reverse
Speed Forward: 7.6 kmh (4.7 mph) Reverse: 2.6 kmh (1.6 mph)
Front tires Lawn/turf: 11×4.00-5
Rear tires Lawn/turf: 15×6.00-6
PTO (Power take-off shaft)
Middle PTO typeIndependent
Middle PTO speed
