Toro Wheel Horse 314-8

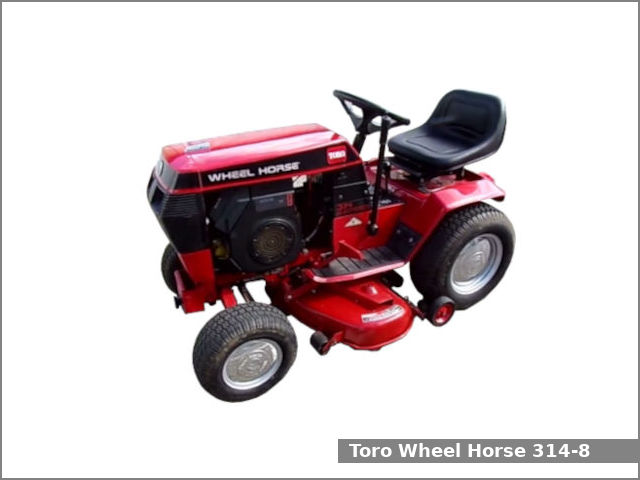

Toro Wheel Horse 314-8The Toro Wheel Horse 314-8 is a 2WD garden tractor from the Classic 300 series. This tractor was manufactured by Toro from 1993 to 2001.

The Toro Wheel Horse 314-8 is equipped with one of two engines: the Kohler Magnum M14 single-cylinder gasoline engine or the Kohler Command CH14 single-cylinder gasoline engine and a belt-driven gear type transmission with 6 forward and 2 reverse gears.

The tractor could be equipped with the following engines:

  • Kohler Magnum M14. It is a 0.5 L, 512 cm2, (31.2 cu·in) single-cylinder natural aspirated gasoline engine with 89.0 mm (3.5 in) of the cylinder bore and 83.0 mm (3.27 in) of the piston stroke. The compression ratio rating is 7.0:1. This engine produced 14.3 PS (10.4 kW; 14.0 HP) at 3,600 rpm of output power.
  • Kohler Command CH14. It is a 0.4 L, 398 cm2, (24.3 cu·in) single-cylinder natural aspirated gasoline engine. The cylinder bore is 87.0 mm (3.43 in) and the piston stroke is 67.0 mm (2.64 in). The compression ratio rating is 8.5:1. This engine produced 14.3 PS (10.4 kW; 14.0 HP) at 3,600 rpm of output power.

The Toro 314-8 is equipped with manual steering, open operator station and 8.5 liters (2.2 US gal.; 1.9 Imp. gal) fuel tank.

Following attachments are available for the Toro Wheel Horse 314-8 garden tractor:

  • Mid-mount Toro Wheel Horse 36 in (910 mm) mower deck with right-discharge and manual lift
  • Mid-mount Toro Wheel Horse 42 in (1,060 mm) mower deck with right-discharge and manual lift
  • Mid-mount Toro Wheel Horse 48 in (1,210 mm) mower deck with 3-blade, right-discharge and manual lift
  • Front-mount Toro Wheel Horse 48 in (1,210 mm) blade
  • Front-mount Toro Wheel Horse 42 in (1,060 mm) single-stage snow blower
  • Front-mount Toro Wheel Horse 48 in (1,210 mm) two-stage snow blower

Toro Wheel Horse 314-8 Specifications

General Specifications
ModelToro Wheel Horse 314-8
Length1,650 mm (65 in)
Width920 mm (36.2 in)
Height–
Wheel base1,150 mm (45.3 in)
Weight283 kg (624 lbs)
Fuel tank capacity8.5 liters (2.2 US gal.; 1.9 Imp. gal)
Battery12V, CCA 210A
Cabin typeOpen operator station
Engine
Engine modelKohler Magnum M14
Engine typeFour-stroke, air-cooled
Cylinders1
Fuel typeGasoline
Displacement0.5 L, 512 cm2, (31.2 cu·in)
Bore and stroke89.0 mm X 83.0 mm (3.5 in X 3.27 in)
Compression ratio7.0:1
Horsepower14.3 PS (10.4 kW; 14.0 HP) at 3,600 rpm
StarterElectric
Oil typeSAE 10W-30
Oil capacity:1.9 L (2 US. qt, 1.7 Imp. qt.)
Spark plugChampion RH10
Engine
Engine modelKohler Command CH14
Engine typeFour-stroke, air-cooled
Cylinders1
Fuel typeGasoline
Displacement0.4 L, 398 cm2, (24.3 cu·in)
Bore and stroke87.0 mm X 67.0 mm (3.43 in X 2.64 in)
Compression ratio8.5:1
Horsepower14.3 PS (10.4 kW; 14.0 HP) at 3,600 rpm
StarterElectric
Oil typeSAE 10W-30
Oil capacity:1.9 L (2 US. qt, 1.7 Imp. qt.)
Spark plugChampion RC12YC
Transmission and chassis
Chassis2WD
Steering typeManual
Brakes–
Transmission modelUni-Drive
Transmission typeBelt-driven gear type
Gears6 forward and 2 reverse
Speed Forward: 8.8 kmh (5.5 mph) Reverse: 4.2 kmh (2.6 mph)
Tires
Front tires Lawn/turf: 16×6.50
Rear tires Lawn/turf: 23x.9.50
