Toro LX425

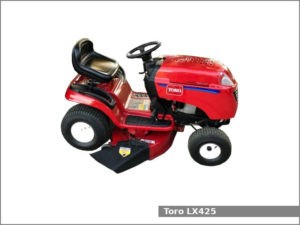

Toro LX425The Toro LX425 is a 2WD lawn tractor from the LX series. This tractor was manufactured by MTD for Toro from 2007 to 2009. The Toro LX425 is equipped with a 0.6 L (36.4 cu·in) single-cylinder gasoline engine and a mechanical CVT transmission with infinite forward and reverse gears.

The Toro LX425 lawn tractor used the Kohler SV600 engine. It is a 0.6 L, 597 cm2, (36.4 cu·in) single-cylinder natural aspirated gasoline engine with 94.0 mm (3.7 in) of the cylinder bore and 86.0 mm (3.39 in) of the piston stroke. The compression ratio rating is 8.5:1. This engine produced 20.3 PS (14.9 kW; 20.0 HP) at 3,370 rpm of output power and 50.0 N·m (5.1 kg·m, 36.9 ft·lb) at 2,200 rpm of torque.

The Toro LX425 is equipped with manual steering, dry disc brakes, Open operator station, and 11.4 liters (3 US gal.; 2.5 Imp. gal) fuel tank.

Following attachments are available for the Toro LX425 lawn tractor:

  • Mid-mount Toro 42 in (1,060 mm) mower deck with 2-blades
  • Front-mount Toro 46 in (1,160 mm) blade
  • Front-mount Toro 42 in (1,060 mm) two-stage snow blower

Toro LX425 Specifications

General Specifications
ModelToro LX425
Length1,727 mm (68 in)
Width1,143 mm (45 in)
Height1,090 mm (42.9 in)
Wheel base1,168 mm (46 in)
Weight226 kg (498 lbs)
Fuel tank capacity11.4 liters (3 US gal.; 2.5 Imp. gal)
Battery12V, CCA 190A
Cabin typeOpen operator station
Engine
Engine modelKohler SV600
Engine typeFour-stroke, air-cooled
Cylinders1
Fuel typeGasoline
Displacement0.6 L, 597 cm2, (36.4 cu·in)
Bore and stroke94.0 mm X 86.0 mm (3.7 in X 3.39 in)
Compression ratio8.5:1
Horsepower20.3 PS (14.9 kW; 20.0 HP) at 3,370 rpm
Torque50.0 N·m (5.1 kg·m, 36.9 ft·lb) at 2,200 rpm
StarterElectric
Oil capacity:1.5 L (1.6 US. qt, 1.3 Imp. qt.)
Transmission and chassis
Chassis4×2 2WD
Steering typeManual
BrakesDry disc
Transmission model
Transmission typeMechanical CVT
GearsInfinite forward and reverse
Speed Forward: 8.8 kmh (5.5 mph) Reverse: 3.7 (2.3 mph)
Tires
Front tiresLawn/turf: 15x6x6
Rear tiresLawn/turf: 20x8x8
PTO (Power take-off shaft)
Front PTO typeIndependent with manual clutch
Front PTO speed
