Big Bud 16V-747

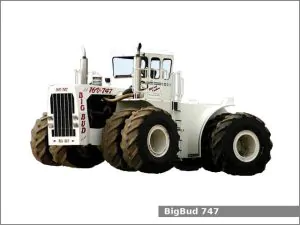

Big Bud 16V-747The Big Bud 16V-747 is a 4WD four-wheel drive tractor manufactured by Big Bud in Havre, Montana, USA in 1978. The Big Bud 16V-747 is equipped with a 24.1 L (1,472.0 cu·in) V16 diesel engine and a power shift transmission with 6 forward and 1 reverse gears.

The Big Bud 747 four-wheel-drive tractor used the Detroit Diesel 16V92T engine. It is a 24.1 L, 24,122 cm2, (1,472.0 cu·in) V16 turbocharged diesel engine with 123.0 mm (4.84 in) of the cylinder bore and 127.0 mm (5 in) of the piston stroke. The compression ratio rating is 17.0:1. This engine produced 973.6 PS (715.9 kW; 960.0 HP) at 2,100 rpm of output power.

The Big Bud 16V-747 is equipped with articulated power steering, pneumatic brakes, Cab (standard), and 3785 liters (1000.0 US gal.; 832.6 Imp. gal) fuel tank.

Big Bud 16V-747 Specifications

General Specifications
Model Big Bud 16V-747
Length 8,680 mm (341.7 in)
Width 6,350 mm (250 in)
Height 4,260 mm (167.7 in)
Wheel base –
Weight (shipping) 43,090 kg (94,997 lbs)
Fuel tank capacity 3785 liters (1000.0 US gal.; 832.6 Imp. gal)
Battery –
Cabin type Cab (standard)
Engine
Engine model Detroit Diesel 16V92T
Engine type Four-stroke, liquid-cooled, V
Cylinders 16
Fuel type Diesel
Displacement 24.1 L, 24,122 cm2, (1,472.0 cu·in)
Bore and stroke 123.0 mm X 127.0 mm (4.84 in X 5 in)
Compression ratio 17.0:1
Horsepower 973.6 PS (715.9 kW; 960.0 HP) at 2,100 rpm
Torque 3390.0 N·m (345.7 kg·m, 2498.4 ft·lb) at 1,200 rpm
Starter Electric
Oil capacity: 61.5 L (65 US. qt, 54.1 Imp. qt.)
Coolant capacity: 56.8 L (60 US. qt, 50 Imp. qt.)
Transmission and chassis
Chassis 4×4 articulated 4WD
Steering type Articulated power
Brakes Pneumatic
Transmission model Twin Disc
Transmission type Power shift
Gears 6 forward and 1 reverse
Tires
Front tires Ag: 35×38
Rear tires Ag: 35×38
Hydraulic system
Hydraulic type Load sensing
Hydraulic capacity 567.8 L (150 US. gal, 124.9 Imp. gal.)
Pressure 2000 psi (137.9 bar)
Pump flow 60 gpm (227.1 lpm)
Total flow 65 gpm (246.1 lpm)
