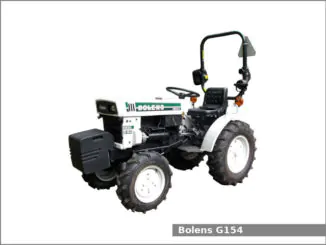

Bolens G154 (1978-1981)

Bolens G154 (1978-1981)The Bolens G154 is a 4WD sub-compact utility tractor manufactured by Iseki for distributor Bolens from 1978 to 1991. This first generation was manufactured from 1978 to 1981. The Bolens G154 is equipped with a 0.7 L (40.8 cu·in) two-cylinder diesel engine and a unsynchronized gear with dry disc clutch transmission with 6 forward and 2 reverse gears.

The Bolens G154 sub-compact utility tractor used the Mitsubishi KE 70 engine. It is a 0.7 L, 668 cm2, (40.8 cu·in) two-cylinder natural aspirated diesel engine with 73.0 mm (2.87 in) of the cylinder bore and 80.0 mm (3.15 in) of the piston stroke. This engine produced 15.2 PS (11.2 kW; 15.0 HP) of output power.

The Bolens G154 is equipped with manual steering, mechanical internal expanding brakes, an open operator station, and 12.0 liters (3.2 US gal.; 2.6 Imp. gal) fuel tank.

Bolens G154 Specifications

General Specifications
Model Bolens G154
Length –
Width –
Height –
Wheel base –
Weight 510 kg (1,124 lbs)
Fuel tank capacity 12.0 liters (3.2 US gal.; 2.6 Imp. gal)
Battery 12V
Cabin type Open operator station
Engine
Engine model Mitsubishi KE 70
Engine type Four-stroke, liquid-cooled, inline
Cylinders 2
Fuel type Diesel
Displacement 0.7 L, 668 cm2, (40.8 cu·in)
Bore and stroke 73.0 mm X 80.0 mm (2.87 in X 3.15 in)
Horsepower 15.2 PS (11.2 kW; 15.0 HP)
Starter Electric
Oil capacity: 2.6 L (2.7 US. qt, 2.3 Imp. qt.)
Coolant capacity: 4.2 L (4.4 US. qt, 3.7 Imp. qt.)
Transmission and chassis
Chassis 4×4 MFWD 4WD
Steering type Manual
Brakes Mechanical internal expanding
Differential lock Mechanical standard
Transmission model –
Transmission type Unsynchronized gear with dry disc clutch
Gears 6 forward and 2 reverse
Speed Forward: 12.4 kmh (7.7 mph) Reverse: 6.4 kmh (4.0 mph)
Transmission oil capacity 12.3 L (3.2 US. gal, 2.7 Imp. gal.)
Tires
Front tires Ag: 5.00-12
Rear tires Ag: 8-16
PTO (Power take-off shaft)
Rear PTO type Transmission
Rear PTO speed 472/752/1177 rpm
