David Brown 950

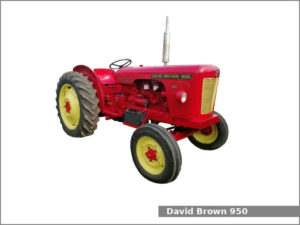

David Brown 950The David Brown 950 is a 2WD utility tractor from the series. This tractor was manufactured by David Brown from 1958 to 1959. The David Brown 950 is equipped with a 2.7 L (165.0 cu·in) four-cylinder diesel engine and the Twin-Range transmission with 6 forward and 2 reverse gears.

The David Brown 950 utility tractor used the David Brown engine. It is a 2.7 L, 2,704 cm2, (165.0 cu·in) four-cylinder natural aspirated diesel engine with 92.0 mm (3.62 in) of the cylinder bore and 102.0 mm (4.02 in) of the piston stroke. The compression ratio rating is 17.0:1. This engine produced 43.1 PS (31.7 kW; 42.5 HP) at 2,200 rpm of output power.

The David Brown 950 is equipped with manual or power (optional) steering, mechanical drum brakes, open operator station, and 52.0 liters (13.7 US gal.; 11.4 Imp. gal) fuel tank.

David Brown 950 Specifications

General Specifications
ModelDavid Brown 950
Length–
Width–
Height–
Wheel base–
Weight1,920 kg (4,233 lbs)
Fuel tank capacity52.0 liters (13.7 US gal.; 11.4 Imp. gal)
BatteryTwo 6V
Cabin typeOpen operator station
Engine
Engine modelDavid Brown
Engine typeFour-stroke, liquid-cooled, inline
Cylinders4
Fuel typeDiesel
Displacement2.7 L, 2,704 cm2, (165.0 cu·in)
Bore and stroke92.0 mm X 102.0 mm (3.62 in X 4.02 in)
Compression ratio17.0:1
Horsepower43.1 PS (31.7 kW; 42.5 HP) at 2,200 rpm
StarterElectric
Oil capacity:7.4 L (7.8 US. qt, 6.5 Imp. qt.)
Coolant capacity:13.6 L (14.4 US. qt, 12 Imp. qt.)
Transmission and chassis
Chassis4×2 2WD
Steering typeManual or power (optional)
BrakesMechanical drum
Final driveSpur gear
Transmission modelTwin-Range
Transmission type–
Gears6 forward and 2 reverse
Tires
Front tiresAg: 6.00-16
Rear tiresAg: 11-32
Three-Point Hitch
CaterogyII/I
Control typeImplematic draft and depth control
Lift capacity (at ends)–
PTO (Power take-off shaft)
Rear PTO typeTransmission or live (optional)
Rear PTO speed540/1,000 rpm
