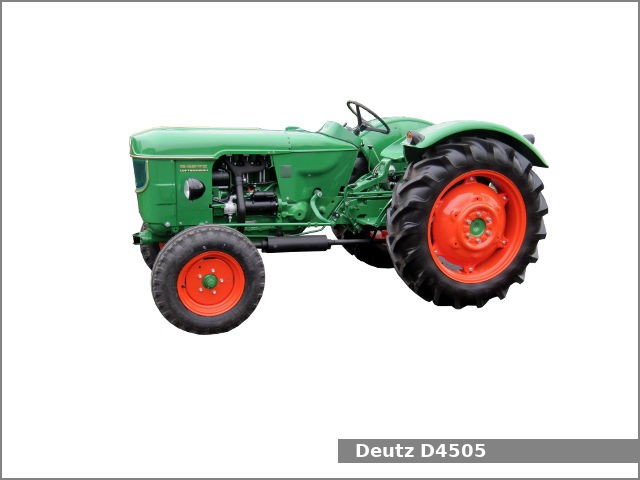

The Deutz D 4505 is a 2WD utility tractor manufactured by the Deutz in Cologne, Germany from 1965 to 1967. The Deutz D4505 is equipped with 2.5 L three-cylinders diesel engine and transmission with 6 forward and 2 reverse gears.
The Deutz D 4505 utility tractor used 2.5 L, 2,549 cm2, (155.6 cu·in) three-cylinders air-cooled diesel engine with 95.0 mm (3.74 in) of cylinder bore and 120.0 mm (4.72 in) of piston stroke. This engine produced 40.5 PS (29.8 kW; 40 HP) at 2,300 rpm of maximum output power and 127 N·m (13 kg·m, 93.6 ft·lb) at 1,500 rpm of peak torque.
The Deutz D 4505 is equipped with hydraulic power steering and open operator station.
Deutz D 4505 Specifications
| General Specifications | |
| Model | Deutz D 4505 |
| Length | 3,430 mm (135 in) |
| Width | 1,510 mm (59.4 in) |
| Height | – |
| Wheel base | 1,990 mm (78.3 in) |
| Weight | 1,920 kg (4,233 lbs) |
| Fuel tank capacity | – |
| Battery | 12V |
| Cabin type | Open operator station |
| Engine | |
| Engine model | Deutz F3L812S |
| Engine type | Four-stroke, air-cooled, inline |
| Cylinders | 3 |
| Fuel type | Diesel |
| Displacement | 2.5 L, 2,549 cm2, (155.6 cu·in) |
| Bore and stroke | 95.0 mm X 120.0 mm (3.74 in X 4.72 in) |
| Horsepower | 40.5 PS (29.8 kW; 40 HP) at 2,300 rpm |
| Torque | 127 N·m (13 kg·m, 93.6 ft·lb) at 1,500 rpm |
| Starter | Electric |
| Transmission and chassis | |
| Chassis | 4×2 2WD |
| Steering type | Hydraulic power |
| Brakes | – |
| Transmission model | T50 |
| Transmission type | – |
| Gears | 6 forward and 2 reverse |
| Speed | Forward: 25.5 kmh (15.8 mph) Reverse: – (0 mph) |
| Tires | |
| Front tires | Ag: 6.00-16; 6.50-16 |
| Rear tires | Ag: 9,5-36; 12.4-32 |
| Three-Point Hitch | |
| Caterogy | I |
| Control type | – |
| Lift capacity | 1750 kg (3859 lbs) |
| PTO (Power take-off shaft) | |
| Rear PTO type | – |
| Rear PTO spped | 540, 1000 rpm |
| Hydraulic system | |
| Hydraulic type | – |
| Pump flow | 4.8 gpm (18.2 lpm) |
