Farm Pro 2425

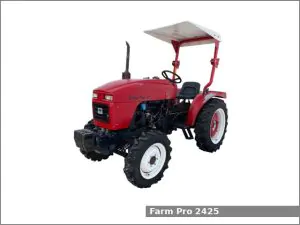

Farm Pro 2425The Farm Pro 2425 is a 4WD compact utility tractor from the series. This tractor was manufactured by Jinma for distributor Farm Pro in China from 2002 to 2006. The Farm Pro 2425 is equipped with a 1.5 L (93.5 cu·in) three-cylinder diesel engine and a transmission with 12 forward and 4 reverse gears.

The Farm Pro 2425 compact utility tractor used the Y385T engine. It is a 1.5 L, 1,532 cm2, (93.5 cu·in) three-cylinder natural aspirated diesel engine with 85.0 mm (3.35 in) of the cylinder bore and 90.0 mm (3.54 in) of the piston stroke. This engine produced 25.3 PS (18.6 kW; 25.0 HP) at 2,350 rpm of output power.

The Farm Pro 2425 is equipped with power steering, two-post ROPS with canopy and 20.8 liters (5.5 US gal.; 4.6 Imp. gal) fuel tank.

Farm Pro 2425 Specifications

General Specifications
Model Farm Pro 2425
Length 2,900 mm (114.2 in)
Width 1,420 mm (55.9 in)
Height 2,180 mm (85.8 in)
Wheel base
Ground clearance 250 mm (9.8 in)
Weight (shipping) 1,380 kg (3,042 lbs)
Fuel tank capacity 20.8 liters (5.5 US gal.; 4.6 Imp. gal)
Battery 12V
Cabin type Two-post ROPS with canopy
Engine
Engine model Y385T
Engine type Four-stroke, liquid-cooled, inline
Cylinders 3
Fuel type Diesel
Displacement 1.5 L, 1,532 cm2, (93.5 cu·in)
Bore and stroke 85.0 mm X 90.0 mm (3.35 in X 3.54 in)
Horsepower 25.3 PS (18.6 kW; 25.0 HP) at 2,350 rpm
Starter Electric
Oil capacity: 3.5 L (3.7 US. qt, 3.1 Imp. qt.)
Coolant capacity: 7.9 L (8.3 US. qt, 7 Imp. qt.)
Transmission and chassis
Chassis 4×4 MFWD 4WD
Steering type Power
Brakes
Transmission model
Transmission type
Gears 12 forward and 4 reverse
Speed Forward: 26.3 kmh (16.3 mph) Reverse: kmh (0 mph)
Transmission oil capacity 14.0 L (3.7 US. gal, 3.1 Imp. gal.)
Tires
Front tires Ag: 6.00-16
Rear tires Ag: 9.5-24
Three-Point Hitch
Category I
Control type
Lift capacity (at ends)
PTO (Power take-off shaft)
Rear PTO type Live with two stage clutch
Rear PTO speed 540/1000 rpm
Hydraulic system
Hydraulic type
Hydraulic capacity 9.1 L (2.4 US. gal, 2 Imp. gal.)
Total flow 3.0 gpm (11.4 lpm)
