Farm Pro 2420

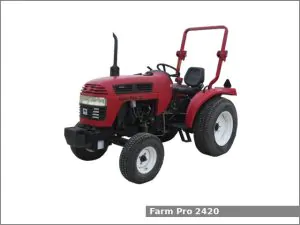

Farm Pro 2420The Farm Pro 2420 is a 2WD compact utility tractor manufactured by Jinma for distributor Farm Pro in China from 2002 to 2006. The Farm Pro 2420 is equipped with a 1.2 L (73.8 cu·in) two-cylinder diesel engine and a gear type transmission with 12 forward and 4 reverse gears.

The Farm Pro 2420 compact utility tractor used the TY290 engine. It is a 1.2 L, 1,209 cm2, (73.8 cu·in) two-cylinder natural aspirated diesel engine with 90.0 mm (3.54 in) of the cylinder bore and 100.0 mm (3.94 in) of the piston stroke. This engine produced 20.3 PS (14.9 kW; 20.0 HP) at 2,300 rpm of output power.

The Farm Pro 2420 is equipped with power (optional) steering, open operator station and 20.8 liters (5.5 US gal.; 4.6 Imp. gal) fuel tank.

Farm Pro 2420 Specifications

General Specifications
Model Farm Pro 2420
Length 2,900 mm (114.2 in)
Width 1,420 mm (55.9 in)
Height 2,180 mm (85.8 in)
Wheel base 1,520 mm (59.8 in)
Ground clearance 250 mm (9.8 in)
Weight (shipping) 1,205 kg (2,657 lbs)
Fuel tank capacity 20.8 liters (5.5 US gal.; 4.6 Imp. gal)
Battery 12V
Cabin type Open operator station
Engine
Engine model TY290
Engine type Four-stroke, liquid-cooled
Cylinders 2
Fuel type Diesel
Displacement 1.2 L, 1,209 cm2, (73.8 cu·in)
Bore and stroke 90.0 mm X 100.0 mm (3.54 in X 3.94 in)
Horsepower 20.3 PS (14.9 kW; 20.0 HP) at 2,300 rpm
Starter Electric
Oil capacity: 6.0 L (6.3 US. qt, 5.3 Imp. qt.)
Coolant capacity: 10.0 L (10.6 US. qt, 8.8 Imp. qt.)
Transmission and chassis
Chassis 4×2 2WD
Steering type Power (optional)
Brakes
Transmission model
Transmission type Gear type
Gears 12 forward and 4 reverse
Speed Forward: 23.7 kmh (14.7 mph) Reverse: kmh (0 mph)
Transmission oil capacity 11.0 L (2.9 US. gal, 2.4 Imp. gal.)
Tires
Front tires Ag: 4.00-16
Rear tires Ag: 8.3-24
Three-Point Hitch
Category I
Control type
Lift capacity (at ends)
PTO (Power take-off shaft)
Rear PTO type Live
Rear PTO speed 540/1000 rpm
Hydraulic system
Hydraulic type
Hydraulic capacity 9.1 L (2.4 US. gal, 2 Imp. gal.)
Total flow 3.0 gpm (11.4 lpm)
