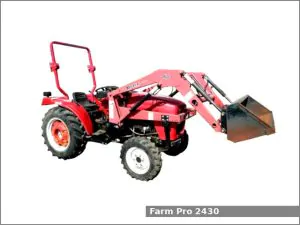

Farm Pro 2430

Farm Pro 2430The Farm Pro 2430 is a 4WD compact utility tractor manufactured by Jinma for distributor Farm Pro in China from 2002 to 2006. The Farm Pro 2430 is equipped with a 2.2 L (136.3 cu·in) three-cylinder diesel engine and a transmission with 8 forward and 2 reverse gears.

The Farm Pro 2430 compact utility tractor used the TY395 engine. It is a 2.2 L, 2,233 cm2, (136.3 cu·in) three-cylinder natural aspirated diesel engine with 95.0 mm (3.74 in) of the cylinder bore and 105.0 mm (4.13 in) of the piston stroke. This engine produced 30.5 PS (22.4 kW; 30.0 HP) at 2,000 rpm of output power.

The Farm Pro 2430 is equipped with power steering, disc brakes, ROPS canopy and 30.0 liters (7.9 US gal.; 6.6 Imp. gal) fuel tank.

Farm Pro 2430 Specifications

General Specifications
Model Farm Pro 2430
Length 3,230 mm (127.2 in)
Width 1,430 mm (56.3 in)
Height 2,430 mm (95.7 in)
Wheel base 1,820 mm (71.7 in)
Ground clearance 260 mm (10.2 in)
Weight (shipping) 1,986 kg (4,378 lbs)
Fuel tank capacity 30.0 liters (7.9 US gal.; 6.6 Imp. gal)
Battery 12V
Cabin type ROPS canopy
Engine
Engine model TY395
Engine type Four-stroke, liquid-cooled, inline
Cylinders 3
Fuel type Diesel
Displacement 2.2 L, 2,233 cm2, (136.3 cu·in)
Bore and stroke 95.0 mm X 105.0 mm (3.74 in X 4.13 in)
Horsepower 30.5 PS (22.4 kW; 30.0 HP) at 2,000 rpm
Starter Electric
Oil capacity: 6.0 L (6.3 US. qt, 5.3 Imp. qt.)
Coolant capacity: 7.2 L (7.6 US. qt, 6.3 Imp. qt.)
Transmission and chassis
Chassis 4×4 MFWD 4WD
Steering type Power
Brakes Disc
Transmission model
Transmission type
Gears 8 forward and 2 reverse
Speed Forward: 24.9 kmh (15.5 mph) Reverse: kmh (0 mph)
Transmission oil capacity 18.5 L (4.9 US. gal, 4.1 Imp. gal.)
Tires
Front tires Ag: 7.50-16
Rear tires Ag: 11.2-24
Three-Point Hitch
Category I
Control type
Lift capacity (at ends)
PTO (Power take-off shaft)
Rear PTO type Live (two-stage clutch)
Rear PTO speed 540/720 rpm
Hydraulic system
Hydraulic type
Hydraulic capacity 8.7 L (2.3 US. gal, 1.9 Imp. gal.)
Total flow 3.0 gpm (11.4 lpm)
