Fiat 1180

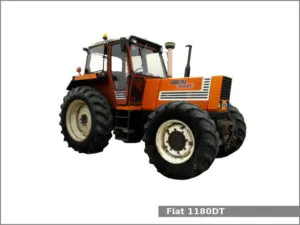

Fiat 1180The Fiat 1180 is a 2WD or 4WD (1180DT) row-crop tractor manufactured by Fiat from 1979 to 1984. The Fiat 1180 is equipped with a 5.5 L (335.6 cu·in) six-cylinder diesel engine and one of two transmissions: a transmission with 12 forward and 4 reverse gears or a mechanical shuttle transmission with 12 forward and 12 reverse gears.

The Fiat 1180 row-crop tractor used the Fiat 8065.04 engine. It is a 5.5 L, 5,499 cm2, (335.6 cu·in) six-cylinder natural aspirated diesel engine with 103.0 mm (4.06 in) of the cylinder bore and 110.0 mm (4.33 in) of the piston stroke. This engine produced 116.7 PS (85.8 kW; 115.0 HP) at 2,500 rpm of output power.

The Fiat 1180 is equipped with hydrostatic power steering, wet disc brakes, Cab (standard), or four-post ROPS with canopy and 180.0 liters (47.6 US gal.; 39.6 Imp. gal) fuel tank.

Fiat 1180 Specifications

General Specifications
Model Fiat 1180
Length 4,130 mm (162.6 in)
Width
Height 2,800 mm (110.2 in)
Wheel base 2,750 mm (108.3 in)
Weight 2WD: 4,900 kg (10,805 lbs)
4WD: 5,200 kg (11,465 lbs)
Fuel tank capacity 180.0 liters (47.6 US gal.; 39.6 Imp. gal)
Battery 12V
Cabin type Cab (standard) or four-post ROPS with canopy available.
Engine
Engine model Fiat 8065.04
Engine type Four-stroke, liquid-cooled, inline
Cylinders 6
Fuel type Diesel
Displacement 5.5 L, 5,499 cm2, (335.6 cu·in)
Bore and stroke 103.0 mm X 110.0 mm (4.06 in X 4.33 in)
Horsepower 116.7 PS (85.8 kW; 115.0 HP) at 2,500 rpm
Starter Electric
Transmission and chassis
Chassis 4×2 2WD or 4×4 MFWD 4WD
Steering type Hydrostatic power
Brakes Wet disc
Transmission model
Transmission type
Gears 12 forward and 4 reverse
Transmission model
Transmission type Mechanical shuttle
Gears 12 forward and 12 reverse
Tires
Front tires Ag: 11.00-16 (2WD), 13.6-28 (4WD)
Rear tires Ag: 16.9-38
Three-Point Hitch
Caterogy II
Control type
Lift capacity (at ends) 4,200 kg (9,260 lbs)
PTO (Power take-off shaft)
Rear PTO type Independent
Rear PTO speed 540, 1,000 rpm
Hydraulic system
Hydraulic type
Pump flow 13.3 gpm (50.3 lpm)
