Ford-New Holland 6610

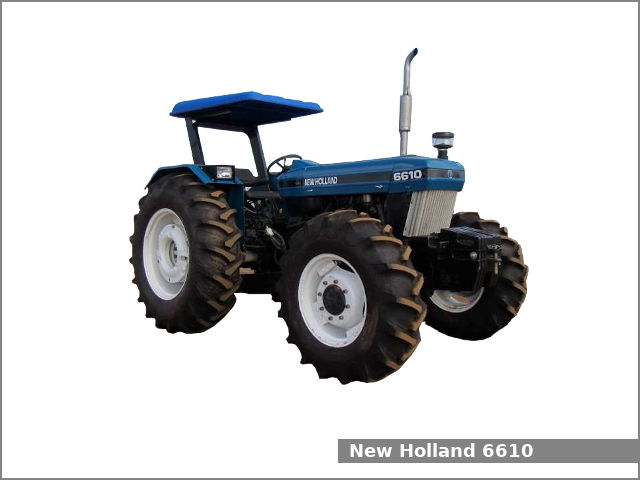

Ford-New Holland 6610The Ford-New Holland 6610 is a 2WD/4WD utility tractor from the series. This tractor was manufactured by Ford-New Holland in from 1982 to 1993. The Ford-New Holland 6610 is equipped with a 0.3 L (16.4 cu·in) four-cylinder diesel engine and four transmission variants.

The Ford-New Holland 6610 utility tractor used the Ford engine. It is a 4.4 L, 4,391 cm2, (268.0 cu·in) four-cylinder natural aspirated diesel engine with 112.0 mm (4.41 in) of the cylinder bore and 112.0 mm (4.41 in) of the piston stroke. The compression ratio rating is 16.3:1. This engine produced 79.6 PS (58.5 kW; 78.4 HP) at 2,100 rpm of output power.

The Ford-New Holland 6610 is equipped with power assist steering, differential mechanical wet disc brakes, two-post ROPS or cab (optional), and 79.5 liters (21 US gal.; 17.5 Imp. gal) fuel tank.

Following attachments are available for the Ford-New Holland 6610 utility tractor:

  • Ford 777B loader
  • Ford 777D Quik-Tach loader
  • Ford 777F loader

Ford-New Holland 6610 Specifications

General Specifications
Model Ford-New Holland 6610
Length 3,680 mm (144.9 in)
Width 1,740 mm (68.5 in)
Height ROPS: 2,430 mm (95.7 in)
Cab: 2,700 mm (106.3 in)
Wheel base 2,220 mm (87.4 in)
Ground clearance 460 mm (18.1 in)
Weight
Fuel tank capacity 79.5 liters (21 US gal.; 17.5 Imp. gal)
Battery 12V, 128Ah
Cabin type Two-post ROPS or Cab (optional)
Engine
Engine model Ford
Engine type Four-stroke, liquid-cooled, inline
Cylinders 4
Fuel type Diesel
Displacement 4.4 L, 4,391 cm2, (268 cu·in)
Bore and stroke 112.0 mm X 112.0 mm (4.41 in X 4.41 in)
Compression ratio 16.3:1
Horsepower 79.6 PS (58.5 kW; 78.4 HP) at 2,100 rpm
Torque 297.0 N·m (30.3 kg·m, 218.9 ft·lb) at rpm
Starter Electric
Oil capacity: 8.5 L (9 US. qt, 7.5 Imp. qt.)
Coolant capacity: 12.8 L (13.5 US. qt, 11.3 Imp. qt.)
Transmission and chassis
Chassis 4×2 2WD or 4×4 MFWD 4WD
Steering type Power assist
Brakes Differential mechanical wet disc
Transmission model Dual-range
Transmission type Synchromesh
Gears 8 forward and 2 reverse
Speed Forward: 30.0 kmh (18.6 mph) Reverse: 14.4 kmh (8.9 mph)
Transmission model Dual-range
Transmission type Synchromesh
Gears 8 forward and 2 reverse4
Speed Forward: 30.6 kmh (19 mph) Reverse: 11.2 kmh (7 mph)
Transmission model Dual Power
Transmission type Partial power shift
Gears 16 forward and 4 reverse
Speed Forward: 30.0 kmh (18.6 mph) Reverse: 14.4 kmh (8.9 mph)
Transmission model Dual Power
Transmission type Synchromesh partial power shift
Gears 16 forward and 8 reverse
Speed Forward: 30.6 kmh (19.0 mph) Reverse: 11.2 kmh (7.0 mph)
Tires
Front tires Ag: 7.50-16 (2WD), 11.2-24 (4WD)
Rear tires Ag: 16.9-30
Three-Point Hitch
Category II
Control type
Lift capacity (at 610 mm/24 in) 1,880 kg (4,145 lbs)
PTO (Power take-off shaft)
Rear PTO type Independent
Rear PTO speed 540, 540/1000 (optional)
Hydraulic system
Hydraulic type Open center
Hydraulic capacity 56.8 L (15 US. gal, 12.5 Imp. gal.)
Pressure 2500 psi (172.4 bar)
Valves 1
Pump flow 9.7 gpm (36.7 lpm)
Steering flow 3.6 gpm (13.6 lpm)
