International Harvester Cub 184 Lo-Boy

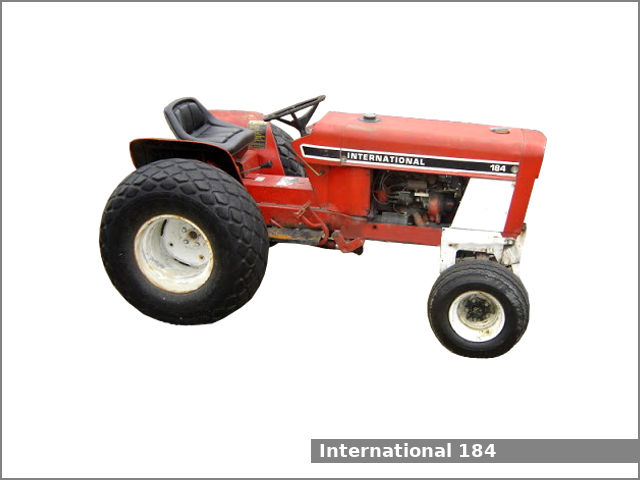

International Harvester Cub 184 Lo-BoyThe International Harvester Cub 184 Lo-Boy is a 2WD compact utility tractor manufactured by International Harvester in Louisville, Kentucky, USA from 1977 to 1980. The International Harvester Cub 184 Lo-Boy is equipped with a 1.0 L (59.5 cu·in) four-cylinder gasoline engine and a unsynchronized gear transmission with 3 forward and 1 reverse gears (6 forward and 2 reverse gears with creeper) and mechanical dry disc clutch.

The Cub 184 Lo-Boy compact utility tractor used the International Harvester C-60 engine. It is a 1.0 L, 975 cm2, (59.5 cu·in) four-cylinder natural aspirated gasoline engine with 67.0 mm (2.64 in) of the cylinder bore and 70.0 mm (2.76 in) of the piston stroke. The compression ratio rating is 7.5:1. This engine produced 18.2 PS (13.4 kW; 18.0 HP) at 2,300 rpm of output power.

The IH Cub 184 Lo-Boy is equipped with manual steering, mechanical drum brakes, open operator station, and 30.3 liters (8 US gal.; 6.7 Imp. gal) fuel tank.

Following attachments are available for the International Cub 184 Lo-Boy compact utility tractor:

  • Mid-mount International Harvester 3160 1,520 mm (60 in) mower deck with 3-blade
  • Front-mount International Harvester 54 1,370 mm (54 in) blade
  • Front-mount McKee 322-H 1,520 mm (60 in) two-stage snowblower

International Harvester Cub 184 Lo-Boy Specifications

General Specifications
Model International Harvester Cub 184 Lo-Boy
Length 2,380 mm (93.7 in)
Width 1,320 mm (52 in)
Height 1,240 mm (48.8 in)
Wheel base 1,620 mm (63.8 in)
Ground clearance 330 mm (13 in)
Weight 735 kg (1,620 lbs)
Fuel tank capacity 30.3 liters (8 US gal.; 6.7 Imp. gal)
Battery 12V
Cabin type Open operator station
Engine
Engine model International Harvester C-60
Engine type Four-stroke, liquid-cooled, inline
Cylinders 4
Fuel type Gasoline
Displacement 1.0 L, 975 cm2, (59.5 cu·in)
Bore and stroke 67.0 mm X 70.0 mm (2.64 in X 2.76 in)
Compression ratio 7.5:1
Horsepower 18.2 PS (13.4 kW; 18.0 HP) at 2,300 rpm
Starter Electric
Oil capacity: 2.8 L (3 US. qt, 2.5 Imp. qt.)
Coolant capacity: 9.2 L (9.7 US. qt, 8.1 Imp. qt.)
Transmission and chassis
Chassis 4×2 2WD
Steering type Manual
Brakes Mechanical drum
Transmission model
Transmission type Unsynchronized gear with mechanical dry disc clutch
Gears 3 forward and 1 reverse
Speed Forward: 16.6 kmh (10.3 mph) Reverse: 6.1 (3.8 mph)
Transmission oil capacity 6.6 L (1.7 US. gal, 1.5 Imp. gal.)
Tires
Front tires Ag: 4.00-12
Rear tires Ag: 8.3-24
Three-Point Hitch
Caterogy I (optional)
Control type
Lift capacity (at ends)
PTO (Power take-off shaft)
Rear PTO type Independent with electro-magnetic clutch
Rear PTO speed 1,600 rpm
Hydraulic system
Hydraulic type Gear pump
Hydraulic capacity 6.6 L (6.97 US. qt, 5.81 Imp. qt.)
Pressure 2000 psi (137.9 bar)
Pump flow 2.0 gpm (7.6 lpm)
