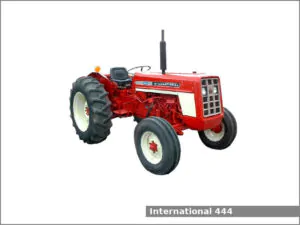

The International Harvester 444 is a 2WD or 4WD utility tractor manufactured by International Harvester in Doncaster, England from 1972 to 1978.
The International Harvester 444 is equipped with one of two engines: a 2.4 L (144.0 cu·in) four-cylinder diesel engine or a 2.5 L (154.0 cu·in) four-cylinder diesel engine and a transmission with 8 forward and 2 reverse gears.
The tractor could be equipped with the following engines:
- International Harvester BC-144. It is a 2.4 L, 2,360 cm2, (144.0 cu·in) four-cylinder natural aspirated diesel engine with 86.0 mm (3.39 in) of the cylinder bore and 102.0 mm (4.02 in) of the piston stroke. This engine produced 42.6 PS (31.3 kW; 42.0 HP) at 2,100 rpm of output power.
- International Harvester BD-154. It is a 2.5 L, 2,524 cm2, (154.0 cu·in) four-cylinder natural aspirated diesel engine. The cylinder bore is 89.0 mm (3.5 in) and the piston stroke is 102.0 mm (4.02 in). This engine produced 42.6 PS (31.3 kW; 42.0 HP) at 2,100 rpm of output power.
The IH 444 is equipped with manual steering, mechanical disc brakes, open operator station.
International Harvester 444 Specifications
General Specifications | |
Model | International Harvester 444 |
Length | – |
Width | – |
Height | – |
Wheel base | – |
Weight | – |
Fuel tank capacity | – |
Battery | 12V |
Cabin type | Open operator station |
Engine | |
Engine model | International Harvester BC-144 |
Engine type | Four-stroke, liquid-cooled, inline |
Cylinders | 4 |
Fuel type | Diesel |
Displacement | 2.4 L, 2,360 cm2, (144.0 cu·in) |
Bore and stroke | 86.0 mm X 102.0 mm (3.39 in X 4.02 in) |
Horsepower | 42.6 PS (31.3 kW; 42.0 HP) at 2,100 rpm |
Starter | Electric |
Engine | |
Engine model | International Harvester BD-154 |
Engine type | Four-stroke, liquid-cooled, inline |
Cylinders | 4 |
Fuel type | Diesel |
Displacement | 2.5 L, 2,524 cm2, (154.0 cu·in) |
Bore and stroke | 89.0 mm X 102.0 mm (3.5 in X 4.02 in) |
Horsepower | 42.6 PS (31.3 kW; 42.0 HP) at 2,100 rpm |
Starter | Electric |
Oil capacity: | 6.6 L (7 US. qt, 5.8 Imp. qt.) |
Coolant capacity: | 9.5 L (10 US. qt, 8.4 Imp. qt.) |
Transmission and chassis | |
Chassis | 4×2 2WD or 4×4 MFWD 4WD |
Steering type | Manual |
Brakes | Mechanical disc |
Transmission model | – |
Transmission type | – |
Gears | 8 forward and 2 reverse |
Tires | |
Front tires | Ag: 7.50-16 |
Rear tires | Ag: 12.4-32 |
